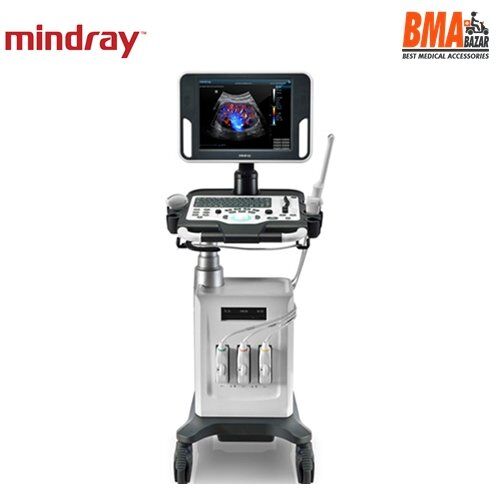

4D Color Doppler Diagnostic Ultrasound Machine Mindray DC-30

Specification:

Standard ultrasound systems currently available typically permit a fundamental diagnosis but the absence of sophisticated functionality. Now, with the industry’s most competitive cost, the DC-30 is the ideal response to high-quality picture performance, with characteristics such as Auto IMT, iScape, Natural Touch Elastography, UWN Contrast Imaging, and Tissue Doppler Imaging added.

Performance
PSHTM (Phase Shift Harmonic Imaging)

For better contrast resolution, Purified Harmonic Imaging provides clearer pictures with outstanding resolution and less noise.

iBeamTM

It allows numerous scanned angles to form a single image, leading in increased contrast resolution and enhanced visualization.

iClearTM

• Gain improved image quality based on auto structure detection
• Sharper & Continuous Edges
• Smooth Uniform Tissues
• Cleaner ‘no echo areas’.

Multiple Beam Formation

The maximum 4-fold task for one transmitted beam. Resulting in great time resolution and increased frame rate.

Natural Touch Elastography

Based on the recently patented technology from Mindray, natural touch elastography decreases reliance on user operation method, enhancing the reproducibility of the operator for greater clinical use.

• Higher stiffness sensitivity
• Good stability and reproducibility.

iScapeTM

Gets a full and expanded perspective of the anatomical structure through panoramic imagery combined with speed indication and forward / backward scanning capability that makes scanning much simpler, smoother and more controllable.UWN (Ultra-Wideband Non-linear) Contrast Imaging

Unique contrast imaging technology from Mindray, using contrast agent characters with both 2nd harmonic and non-linear basic signal to improve the S / N ratio for better diagnostic information and longer length of contrast agent for better observation.

ExFOV

Discover better diagnostic data on all convex and linear samples through an expanded perspective of the anatomical structure.

B-Steer TM

Your deeper biopsy tool: enabling changes to the scanning line to increase the needle, nerves and tiny vessels ‘ visibility.

Free Xros MTM

Gain precise anatomical observation by freely placing sample lines at any angle.

TDI

Tissue Doppler Imaging enables you to assess local myocardial motion and function quantitatively, offering full TDI modes for quick and direct diagnosis.

Workflow

iScanHelper

• Dedicated inbuilt tutorial software
• Anatomical diagram illustrations including schematic and ultrasound picture
• Standard ultrasonogram comparison with real-time scanning
• Scanning reference picture demonstrating appropriate patient position and probe placement
• Tips on scanning skills and diagnostic information.

Auto IMT

Auto measurement of anterior and posterior wall thickness providing accurate carotid status

Raw Data

Allows optimum flexibility to post-process the stored pictures, including parameter modifications, remarks and measurements, enabling maximum efficiency during scanning.

iZoomTM

Gain an instant full-screen view on the click of a single key.

iTouchTM

Gain instant auto image optimization in B, Color and PW Modes on the click of a single ke.

iStorage

Directly transfer images and reports to PC via network cable.

iStationTM

Mindray’s unique Patient Information Management System allowing you to integrate, review, archive and retrieve patient data effectively.

MedSight

DC-30 allows you to use an interactive app to move clinical pictures and cine to your IOS or smart device is driven by android. You can now take the clinical exams with you wherever necessary with MedSight.

Ergonomics:

• 15”/17’’ LED monitor with easy handle
• Height-adjustable control panel
• CD/DVD-RW and USB ports
• Removable transducer holder
• Built-in battery for live scanning
• Three active transducer connectors.
