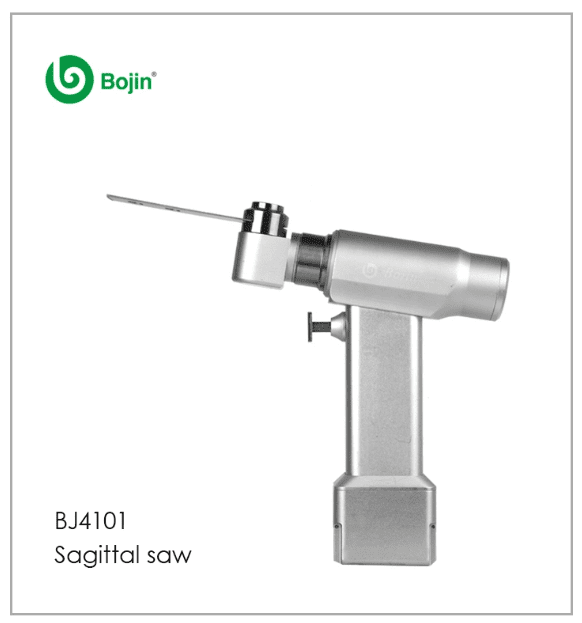

Bojin Orthopedic Sagittal Saw for Joint Suergery (BJ4101)

Application:
For application in cutting bones during joint surgery.
With the perfect shape of ergonomic design, the whole unit is autoclavable, the motor is imported, there is low noise, steady and quick cutting, no damage to soft tissue, a long service life, and a 2-year warranty. A variety of different thicknesses or the length of the saw blade for your selection. Common length are 70mm, 90mm, and 100mm, common thicknesses are 0.8mm, 1.0mm, 1.2mm, and 1.27mm, saw blades can also be customized according to your request.

Standard Configuration:
1. One handpiece
2. One battery
3. One charger
4. One saw blade
5. One Aseptic battery transfer ring
6. One Operating manual
7. One Guarantee Card

Warranty:
The handpiece guarantees for 2 years, the battery and other fast consumption items guarantee for 3 months.

Advantages:
1.Our whole power tool can be autoclavable.
2.We can autoclavable for 135 °C (Improved type ≤ 155 °C ),with 1.6Mpa,in this way the bacilli and virus which can not killed by the suffocating will be killed.
3.We use environment friendly nickel-metal hydride battery.
4.The machine has very low noise.
5.Our products has 2 years warranty period.

Notes:
1. Sterilize temperature ≤ 135 °C (improved type ≤ 155 °C ), if the temperature is over 135 ° C, the motor will be damaged.
2. A normal bone drill can only hold drill bits less than 6 mm; an acetabulum reaming drill with big torque, rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
3. The battery needs to be removed from the power tool after surgery. Otherwise, the small automatic discharge of the electric will shorten the battery’s short.
4.The battery cannot be sterilized; it is not autoclavable.
5.The cranial bur must be washed right after the surgery by purger in order to aviod the blood stick in the bur, then we should make it dry.
6.The battery space in the handpiece of the tool should not have any water,after sterilization.
7. The cranial bur blade is made of medical stainless steel,in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
