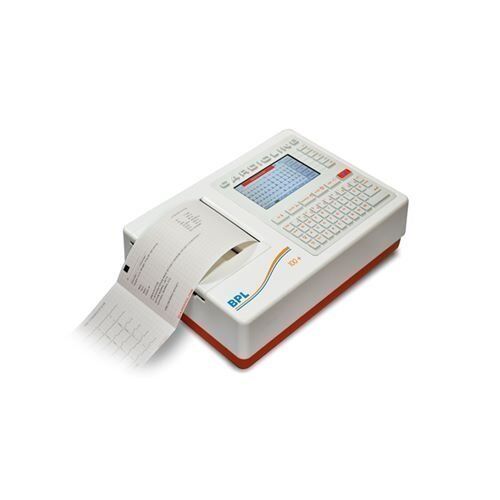

BPL Cardioline ECG100+
৳ 195,000.00
BPL Cardioline ECG100+
6 Channel ECG Machine
Cardioline 100+ is a sleek and stylish six-channel ECG recorder designed with contemporary needs in mind. In combination with robustness and reliability, 100 + offers traces that you can trust, Equipped with an alphanumeric keypad and a color display. Equipped with Glasgow algorithm, it accurately interprets ECGs and comes with various communication protocols and various information transfer formats.
Technical Specifications
ECG Leads | 12-leads (I, II, III, aVR-L-F, V1-6) |
CMRR | 115 dB |
Sampling Frequency | 500 or 1000 Hz/channel/storage |
A/D Conversion | 24 bit |
Resolution | < 1uV/LSB |
Bandwidth | 0.05 – 150 or 300 Hz depending on the sampling rate |
Pacemaker Detection | Hardware and software correlated detection with digital filter |
Filters | Fully digital high-pass diagnostics filter; digital AC interference adaptive filter (50/60 Hz); digital low-pass filter (applied during display and printing stage) |
Defibrillation Protection | AAMI/IEC standards |
Front-End Performance | ANSI/AAMI IEC 60601-2-25:2011 |
Safety | ANSI/AAMI ES1, Class I CF, CE0476 |
ECG Storage | Internal memory 100 ECGs, an expansion for 1000 additional ECGs (optional) |
Display | 4.3″ backlit LCD color display, displays the ECG waveform in real time |
Thermal Printer | 8 dot/mm; 108mm; Z-fold 150mm paper |
Manual Printing | 3 or 6 channels -5/10/25/50 mm/s |
Automatic Printing | Standard or Cabrera; 3, 3+1, 6 channels |
Patient Demographic, Global Measurements, Optional Interpretation (Glasgow University – Prof. MacFarlane) | |
Keypad | Mechanical keypad with alphanumeric keys and function keys |
Connectivity | USB device, LAN, 802.11g/n Wi-Fi (optional) |
Patient Cable | Standard 15D, 10 electrodes |
Data Export | PDF, XML (optional), GDT (optional), DICOM (optional), HL7 (optional) |
Power Supply | Medical AC power-supply unit (100-240 VAC 50/60 Hz); internal rechargeable battery |
Dimensions | 285 x 204 x 65 mm |
Weight | 1.8kg with battery |
Available on backorder
BPL Cardioline ECG100+
6 Channel ECG Machine
The electrocardiographs of the ECG100+ series are components of the spectrum of linked ECG systems from Cardioline.
Thanks to its user-friendly user interface and big alphanumeric keypad, ECG100+ is simple to use. A 4.3 “color display with high resolution displays the ECG in real-time.
Glasgow University has created its interpretation program and is able to analyze ECGs from both adult and pediatric patients.
ECG100+ can be linked to EMIS Web, SystmOne, Cerner & McKesson, the most popular digital patient record systems. Bidirectional data transmission using DICOM, HL7 & XML implies that ECGs can be completely incorporated into current workflows in healthcare centers without manually entering patient information.
ECG100 + works with the ECG On-Demand ® ECG interpretation service of Technomed seamlessly.
Main Feature
- Multi-connectivity (USB, LAN, Wi-Fi) to electronic patient record (EPR) devices for bidirectional interaction.
- Diverse formats and protocols for exporting information (SCP, DICOM, XML, PDF, GDT, HL7).
- Large, high-quality color screen to display real-time ECG trace.
- High-resolution multi-print heat printer.
- Long battery life for use throughout the day.
- Easy to use due to the user-user friendly & alphanumeric keypad
- Class-leading ECG interpretation algorithm from Glasgow University.
Brand
Cardioline
