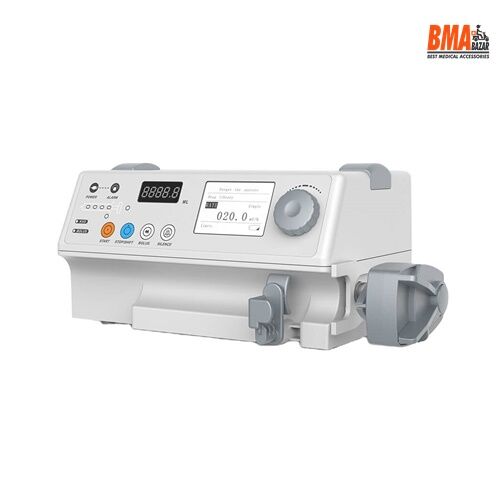

Byond BYS-810 Single Channel Syringe Pump


Byond BYS-810 Single Channel Syringe Pump

Specifications:

Product Name: Syringe Pump
Brand Name: BYOND
Model Number: BYZ-810
Place of Origin: Hunan, China
Power Source: Electric
Warranty: 1 Year
Material: Acrylic, Metal, Plastic
Quality Certification: ce
KVO Speed: 0.1~5ml/h (0.1ml/h step)
Power Consumption: 35VA
Operating ambient temperature: +5℃~+40℃
Operating atmospheric pressure: 86.0kPa~106.0kPa
Net Weight: 2.2Kg
Price

Byond BYS-810 Single Channel Syringe Pump

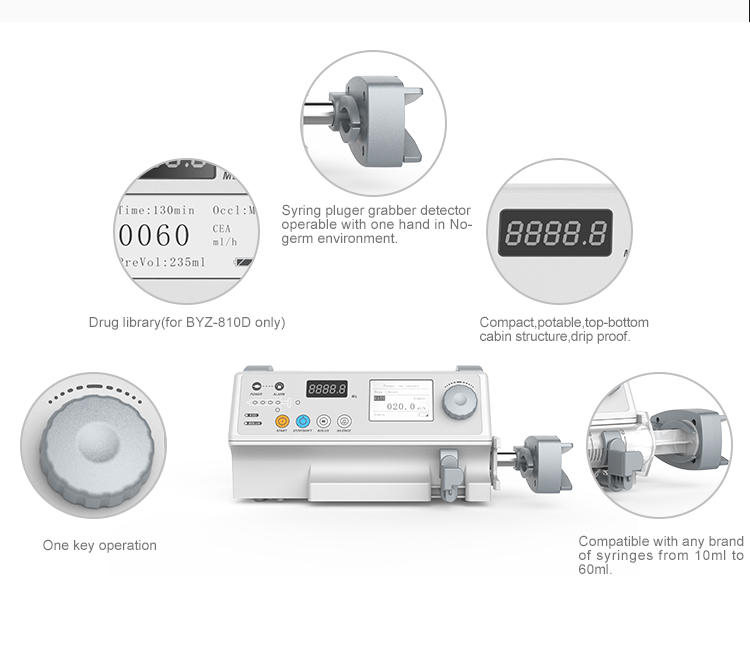

4.3-inch HD LCD display, powerful sound, user-friendly interface, and dynamically displayed functioning status For expansion, emptiness, empty, low battery, end of charge, syringe loss, and improper setting, there is an audible and visual alarm. Compatible with any brand of 5/10/20/30/50/60ml syringe. The amount of pre-programmed solutions for reducing nurse burden. There are three levels of termination purging and ball function, as well as three functional modes.

Features:

  • HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
  • Audible and visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
  • Compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
  • Preset solution volume to greatly reduce the workload of nurses;

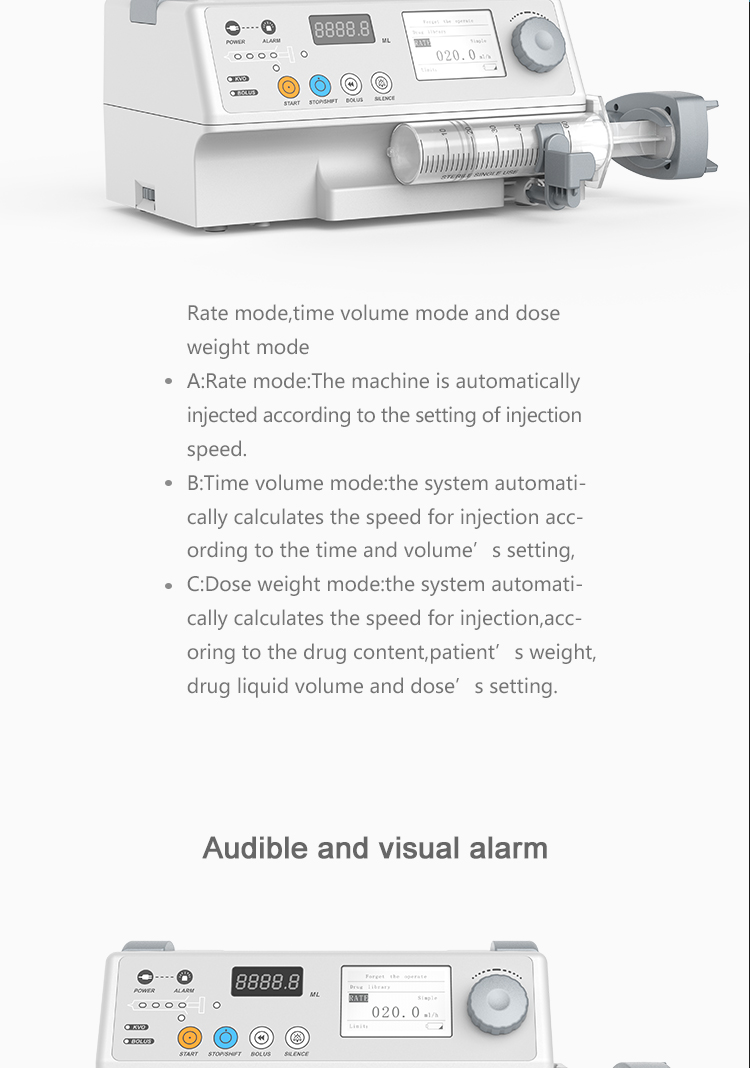

  • Three working modes: Rate mode, Time Volume mode, Dosage Weight mode;
  • Three levels of occlusion: high, medium and low;
  • Purge and Bolus function;

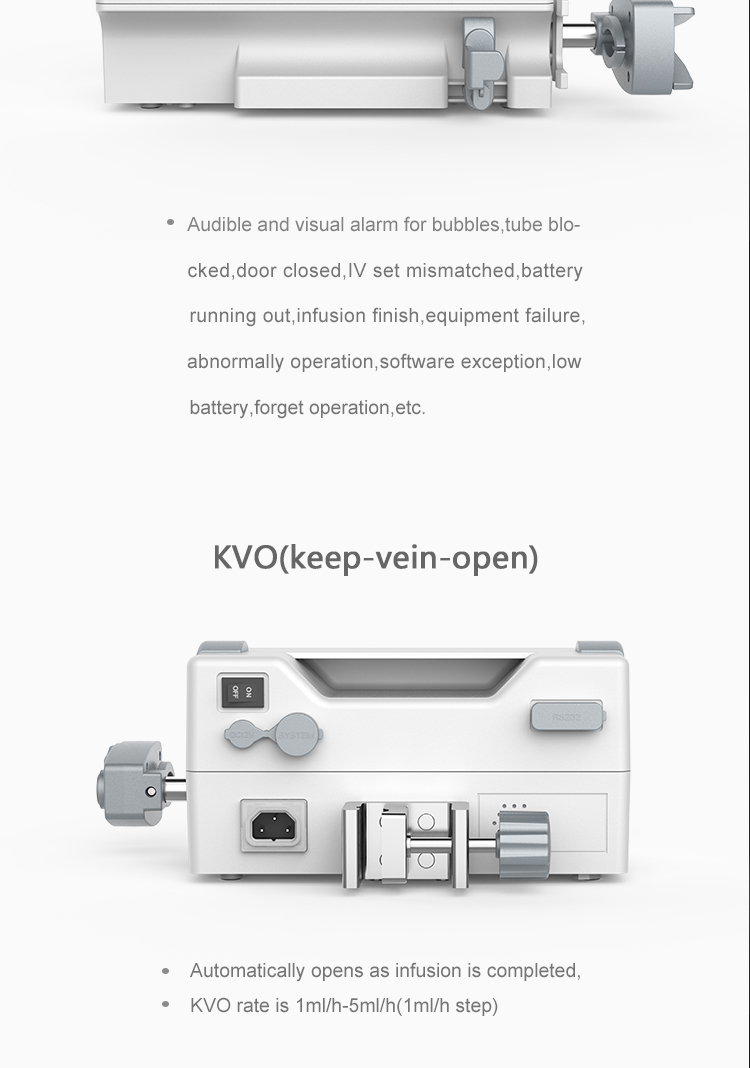

  • KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 0.1-5ml/h(0.1ml/h step);
  • Freely Stackable: freely stack one syringe pump onto another to provide multiple solutions, which have a wide range of clinical applications;
  • Power Source: AC100—240V, 50/60Hz; Internal Battery, DC12V car charge;
  • One-key operation makes setup easy and simple;
  • Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
  • Automatically record the settings of last injection;
Infusion Rate 50/60ml Syringe: 0.1ml/h~1500ml/h(0.1ml/h step)

30ml Syringe: 0.1ml/h—900ml/h(0.1ml/h step)

20ml Syringe:0.1ml/h—600ml/h(0.1ml/h step)

10ml Syringe 0.1ml/h—300ml/h(0.1ml/h step)

Rate Accuracy Within±3%(after correct calibration)
Maximum Stackable 8pcs
Purge Rate 50(60)ml Syringe:1500ml/h

30ml Syringe:900ml/h

20ml Syringe:600ml/h

10ml Syringe:300ml/h

Mechanical Accuracy Within±2%
Bolus Rate 50(60)ml Syringe:1200ml/h

30ml Syringe:720ml/h

20ml Syringe:480ml/h

10ml Syringe:240ml/h

Volume Limit 0.1ml—9999.9ml(0.1ml step)
Total Injection 0.1ml—9999.9ml(0.1ml step)
Maximum Infusion Pressure 150kPa
Occlusion High 800mmHg±200mmHg(106.7kPa±26.7kPa)

Medium 500mmHg±100mmHg(66.7kPa±13.3kPa)

Low 300mmHg±100mmHg(40.7kPa±13.3kPa)

Dimension 280mm(L)´210mm(W)´130mm(H)
Net Weight 2.2kg
Package Reference 1pc Carton:3.2KG,36cm(L)´29cm(W)´18cm(H)

2pcs Carton:7.2KG,39cm(L)´38cm(W)´31cm(H)

3pcs Carton:10.7KG,58cm(L)´38cm(W)´31cm(H)

Syringe Compatible with 10ml,20ml,30ml,50/60ml syringe of any brands after correct calibration
