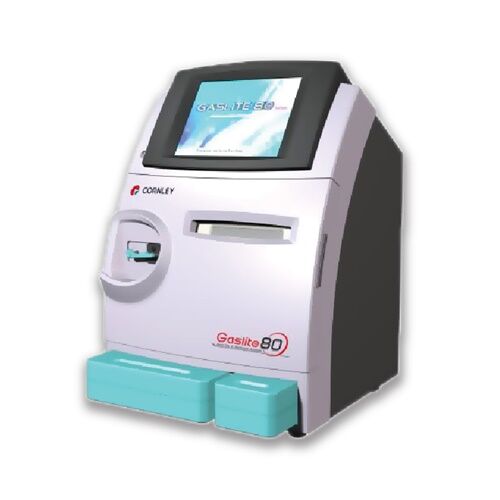

Cornley-ABG Machine
Brand: Cornley
Origin: China
Parameter
Gaslite 80: pH, pCO2, PO2, k+, Na+, Cl+, Ca++, Hct
Gaslite 80A: pH, pCO2, PO2, Hct
Gaslite 80B: pH, pCO2, PO2, k+, Na+, Cl+, Hct
৳ 550,000
Brand: Cornley
Origin: China
Parameter
Gaslite 80: pH, pCO2, PO2, k+, Na+, Cl+, Ca++, Hct
Gaslite 80A: pH, pCO2, PO2, Hct
Gaslite 80B: pH, pCO2, PO2, k+, Na+, Cl+, Hct
Product Name | Blood Gas Electrolyte Analyzer |
Brand | Radiometer, Denmark |
Model | ABL80 |
Usage/Application | Hospital |
Assays | blood gas, electrolyte, and lactate |
Operation Mode | Automatic |
Frequency | 50/60 Hz |
Chamber Type | Single |
Model: Erba Lyte Plus
Brand: Erba
Origin: Germany
The Erba Lyte series of electrolyte analyzers are automated, microprocessor controlled analytic analyzers that use ISE (Ion Selective Electrode) technology for the measurement of ions – potassium (K), sodium (Na), chloride (Cl), calcium (Ca), lithium (Li), pH and HCO3- (CO2) in human body fluids.
The analyzer consists of electrochemical sensors, pressure sensors, microprocessor systems, control systems, auto sampling systems, auto washing systems and reagent kits including standard A, standard B, and other standards, where required.
Technical Specification
Measuring Range
Analyte | Measuring range | Precision (CV%) |
K+ | 0.50 – 15.0 mmol/L | ≤ 1.0% |
Na + | 30.0 – 200.0 mmol/L | ≤ 1.0% |
Cl | 30.0 – 200.0 mmol/L | ≤ 1.0% |
Ca++ | 0.10 – 5.00 mmol/L | ≤ 2.0% |
Li + | 0.20 – 3.00 mmol/L | ≤ 3.0% |
pH | 4.00 – 9.00 unit | ≤ 1.0% |
Technical Specification:
MAIN CHARACTERS:
Sample | Whole blood, Serum, Plasma, Urine |
Sample Volume | 100-200ul, adjustable |
Test Method | selectivity electrode technology |
Reagent pack | Calibration solution in one combined reagent pack |
Calibration | Automatic |
Test Speed | ≤ 60 samples/hour |
Memory Storage | Up to 2000 test results |
Display | LCD (320*240) |
Input | Touch screen, Bar-code scanner |
Output | Build-in thermal printer, RS-232C tie |
Waste Storage | Closed Pack System |
Reagent Pack | Closed Reagent System |
Dimension | 34x25x40cm(L*W*H) |
Net Weight | 5 Kg |
TEST RANGE AND ACCURACY:
Channel | MEASURING RANGE | RESOLUTION | CV% |
K+ | 0.50 ~ 15.00 mmol/L | 0.01 mmol/L | ≤ 1.0% |
Na+ | 30.0 ~ 200.0 mmol/L | 0.1 mmol/L | ≤ 1.0% |
Cl– | 30.0 ~ 200.0 mmol/L | 0.1 mmol/L | ≤ 1.0% |
Ca++ | 0.1 ~ 5.0 mmol/L | 0.01 mmol/L | ≤ 2.0% |
Li+ | 0.2 ~ 3.0 mmol/L | 0.01 mmol/L | ≤ 3.0% |
pH | 4.00 ~ 9.00 | 0.01 | ≤ 1.0% |
WORKING ENVIRONMENT:
Ambient Temperature | 15 ℃ ~ 30 ℃ |
Relative Humidity | 20~85% |
Sun Radiation | Avoid direct sunshine |
Power Supply | AC100-240V, 50/60HZ |
Technical Specification:
SAMPLE TYPE: Plasma, Serum, Blood, Urine
TEST RANGE AND ACCURACY:
Channel | RANGE | RESOLUTION | CV% |
pH | 6.00 ~ 9.00 | 0.01 | < 1.0 |
K+ | 0.50 ~ 10.00 mmol/L | 0.01 | < 1.0 |
Na+ | 20.0 ~ 200.0 mmol/L | 0.1 | < 1.0 |
Cl- | 20.0 ~ 200.0 mmol/L | 0.1 | < 1.0 |
Ca++ | 0.3 ~ 5.0 mmol/L | 0.01 | < 1.5 |
Li+ | 0.1 ~ 3.0 mmol/L | 0.01 | < 1.5 |
WORKING ENVIRONMENT:
Ambient Temperature | .5 ℃ ~ 40 ℃ |
Relative Humidity | ≤ 85% |
Sun Radiation | Avoid direct sunshine |
Power Supply | AC100-240V(50/60HZ) |
MAIN CHARACTERS:
Flow Path | Fluid Moving system |
Reagent pack | Calibration solution in a single reagent pack |
Calibration | Automatic or On-demand |
Memory Storage | Up to 1500 patient result, 199 normal QC, 199 Abnormal QC |
Analyzing Time | 30 seconds after aspiration |
Sample Volume | Minimum 65µL whole blood or serum |
Display | Wide LCD(240*128) |
Input | Keypad (16 alphabets Numeric display, YES or NO) |
Output | Internal thermal-printer; RS232 |
Waste Storage | Closed Pack System |
Reagent Pack | Closed Reagent System |
DIMENSIONS | 30 x 26 x 36 cm |
NET WEIGHT | 7.5 kg |
.
