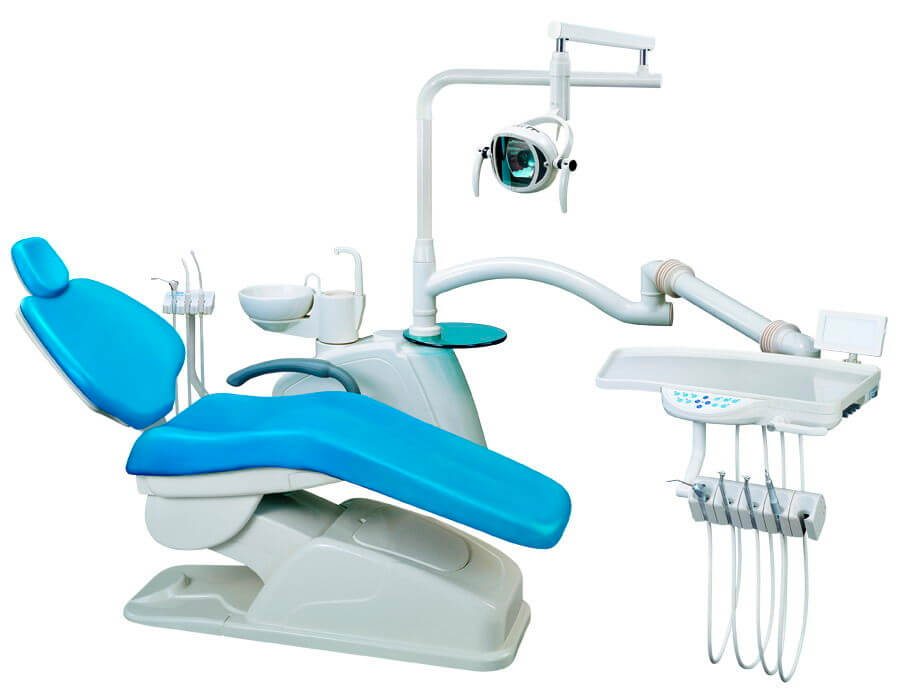

Dental unit AL-398AA
The dental unit features full computer control and operation panel. It is convenient for dentist to observe and operate and can effectively prevent incorrect operation.
- The headrest is telescopic adjustable. Length≤120mm, Forwards inclination: 20°, Backwards inclination: 40°
- Noise≤ 45db. It is equipped with high quality silent DC motor to ensure the use safety.
- The four directions of motion can be controlled by foot or hand. The microcomputer control system has reset function and support PLC control (We can use preset program to control the electric circuit according to your requirements).
- Chair positioning control: The patient chair can be controlled to raise, lower, raise the backrest, and recline the backrest. It also has reset function and support PLC control.
- LED cold light control: There is infrared sensor switch to control the light turn on/off, and the light intensity.
- Water heater control: Manually turn on/off.
- Water flow control for mouthwash: Click button to turn on/off. The duration of water supply can be set to realize accurate dosing of mouthwash.
- Water flow control for spittoon flush: Click button to turn on/off. The duration of the spittoon flush can be set.
- The control of LED X-ray film viewer: Click button to turn on/off.
- Rotatable unit box: The unit box is rotatable within 45°, thus offering more usable space for the dentist and dental technician to practice four handed dentistry, and more convenience for postoperative cleaning and maintaining.
- Water purification system * 1: The water purification system provides clean water including pure water, distilled water and more for handpiece. Its adjusting switch is easy to use.
- Water storage tank: It is equipped with dual bottles and supports fast switch from them.
Instrument tray * 1
Panoramic X-ray film viewer * 1
High speed 4 hole handpiece * 2
Low speed 4 hole handpiece * 1
3-way syringe * 1
- The spray water and air valve is below the instrument tray by which dentist can control the flow of spray water and air according to requirements.
- The movable instrument tray can hover at any position on its movement path. It is flexible and convenient to operate.
Strong & weak suction saliva ejector *1
- The control system operated by assistant tray is convenient to use. It can be used to control the spittoon flushing, the water supply, the water heating, the motion of the chair, etc.
- It uses infrared sensor switch to control the light turn on/off and the light intensity, and uses button to adjust the light color.
Low brightness≤8000Lx, High brightness≥20000Lx
Color temperature: 5000-6000K. Illumination intensity≥2200Lx
- It features high temperature resistance, easy to clean, disinfect, and disassemble.
- Max water flow rate≥4.5L/min
- It has the advantages of adjustable height and flexible movement.
- Lifting range: 130mm
- Weight capacity: 155kg
- The surface of the operating stool is made of seamless PU leather which features softness and comfort, not easy to stain, and convenient to clean.
