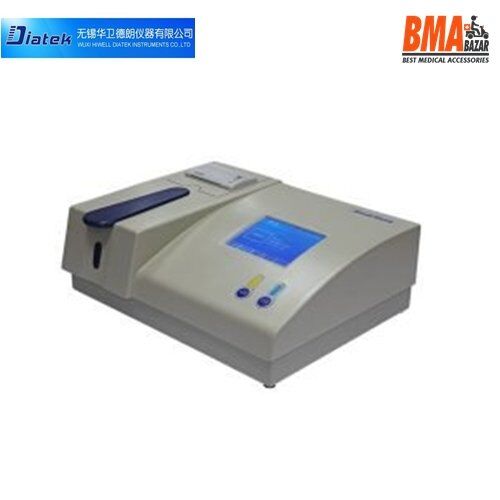

DKP-620 Laboratory Equipment Digital Semi-Auto Biochemistry Analyzer
DKP-620 Laboratory Equipment Digital Semi-Auto Biochemistry Analyzer
Type | Biochemical Analysis System |
Brand Name | DIATEK |
Model Number | DKP-620 |
Net Weight | 7 kg |
Gross Weight | 9 kg |
Instrument Size | 430mm(L)×330mm(W)×140mm(H) |
Package Dimension | 350mm×450mm×590mm |
Power Supply | AC 100V~240V, 50/60 Hz |
Fuses | 2-φ5×20 BGXP1.5A 250V |
Flow cell | 32 uL quartz flow cell |
Work environment | Temperature: +5 ~ +40℃;Relative humidity: 20%~80%; |
Atmospheric pressure:700~1060hpa; | |
Storage temperature | -20℃ ~ 50℃ |
Lamp | Tungsten Halogen Lamp, OSRAM 64225 6V/10W |
Reading range | 0.000~4.500A |
Warm-up time | 10 min |
CPU | ARM core CPU |
Ports | RS232 serial port,parallel printer port,USB port,PS/2 keyboard and mouse port |
Display | 320×240 LCD |
Input mode | Touch Screen, Touch pen, external keyboard and mouse |
Memory Capability | 500 test items and up to 10,000 test data |
Printer | Built-in Thermal Printer, optional external printer |
Wavelength Range(nm) | 340,405,510,546,578,630,690(add up to 2 filters in the range of 300~850) |
Analysis means | end-point, kinetic, fixed-time, nonlinear |
Carryover | ≤ 1.0% |
Stability | ≤ 0.01 A |
Absorbance Accuracy | ≤±0.005A or ±1% |
Resolution | ±0.001Abs |
Minimum volume | 200μL ~3000μL |
Half bandwidth | ≤ 6 nm |
DKP-620 Laboratory Equipment Digital Semi-Auto Biochemistry Analyzer
Features:
- Optional touch screen, external mouse action, and standard keyboard
- Micro dimension flow cell, with precision temperature control and low carryover
- Realtime reaction curve displayed, abnormity detected in time
- Large memory to store up to 20000 sample results, with result correction
- Multi-forms in result output including a patient comprehensive report
- Quality control feature, with data statistics and searching
- Intercommunication with RS-232, optional Lead-Workstation biochemistry analyzing software
- Particular reproducibility performance test, easy to know the instrument’s status
