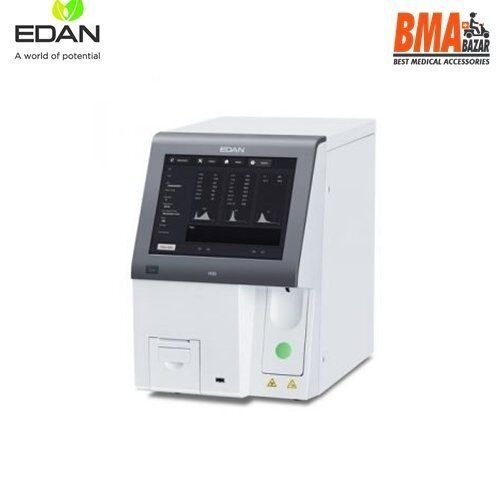

EDAN 3 part different CBC fully auto hematology analyzer machine for blood test H30
The H30 is driven by state-of-the-art technology with a mature technical platform, adopting the new user-centered philosophy of design, adopting the new user-centered philosophy of design. This 3-part differential automated hematology analyzer carries with it greater stability and decreased cost-ideal maintenance for those seeking cost-effective, quality-free solutions.
- CBC+3-DIFF, 20 parameters+3 histograms
- Throughput: 60 samples per hour
- 6 uL whole blood sampling
- Intuitive operation system with 10.4 inch TFT touch screen
- Direct current voltage under safety limit (24V)
- 35,000 results storage with histograms
- 3 routine reagents: Diluent, Lyse, and Cleaner
- Low reagent consumption
Specifications
Parameters:
20 parameters: WBC, LYM%, MID%, GRA%, LYM#, MID#, GRA#, RBC, HGB, HCT, MCV, MCH,
MCHC, RDW, RDW-SD, PLT, MPV, PDW, PCT, P-LCR
Histograms: WBC (3-Diff), RBC and PLT
Principles: Electrical impedance method for cell counting and cyanide-free lyse for hemoglobin measurement
Throughput: 60 samples per hour
Sample Volume: 9.6μL for whole blood mode; 20μL for predilution mode
Display: 10.4 inches TFT color touch screen
Interface: 5 x USB Port, LAN
Operating Environment: Temperature: 18°C~32°C ; Humidity: ≤80% ; Air pressure: 70 kPa~106 kPa
Input Device: Built-in virtual keyboard and external barcode scanner
Power Supply: 100V-240V, 50Hz/60Hz
Dimensions and Weight: Depth (430 mm) x Width (275 mm) x Height (406 mm) ; Weight: <15kg
Data Storage Capacity: 35,000 files including demographics, results and histograms, 12 QC files (100 data per file)
