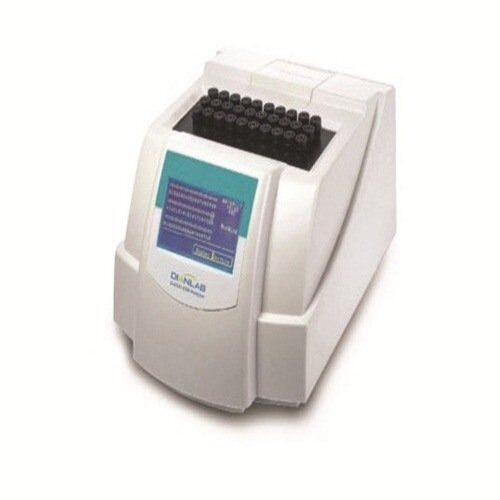

ESR Analyzer D-ES30
৳ 200,000.00
ESR Analyzer D-ES30
Technical Specification:
| Application area | Erythrocyte sedimentation rate analysis |
| Measuring principle | Infrared sensor |
| Reading channels | 30 available channels |
| Loading capability | Up to 30 samples at a time |
| Loading pattern | Random |
| Measuring time | 30 minutes or 60 minutes selectable |
| Throughput | Up to 60 samples per hour |
| Analysis result | In Westergren ESR value (mm/hr) |
| Temperature compensation | Refer to 18?C automatically (selectable) |
| Reading resolution | 0.2mm |
| Reproducibility | < 0.3% or 2mm/1h |
| Result resolution | 1mm/1h |
| Blood level range | 50mm~64mm |
| Display | LCD |
| Input | Touch screen |
| Interface | RS-232 serial port |
| Internal thermal printer | |
| Power supply | AC 220V/110V ?10%, 50/60/Hz, 50W |
| Operation conditions | 15C?~32?C Humidity ?85% |
| Dimension | 400mm?300mm?200mm(L?W?H) |
| Net weight | 11.5kg |
ESR tubes for DIANLAB ESR analyzers:
| Cap Color | Additives | ?Material | Volume/Tube size |
| Black | Sodium Citrate 3.2% (ESR Tube ) | Glass (vacuum) | 1.28ml, 8?120mm |
Out of stock
Description
ESR Analyzer D-ES30
Features:
- Random access
- Up to 30 samples can be scanned simultaneously
- Up to 60 samples per hour, Temperature compensation according to Westergren method
- ESR curve display and print out
- Touch screen, large LCD display
- Internal thermal printer
- Operating system supporting multiple languages (English, Spanish, French, Italian).
Specification:
| Application area | Erythrocyte sedimentation rate analysis |
| Measuring principle | Infrared sensor |
| Reading channels | 30 available channels |
| Loading capability | Up to 30 samples at a time |
| Loading pattern | Random |
| Measuring time | 30 minutes or 60 minutes selectable |
| Throughput | Up to 60 samples per hour |
| Analysis result | In Westergren ESR value (mm/hr) |
| Temperature compensation | Refer to 18?C automatically (selectable) |
| Reading resolution | 0.2mm |
| Reproducibility | < 0.3% or 2mm/1h |
| Result resolution | 1mm/1h |
| Blood level range | 50mm~64mm |
| Display | LCD |
| Input | Touch screen |
| Interface | RS-232 serial port |
| Internal thermal printer | |
| Power supply | AC 220V/110V ?10%, 50/60/Hz, 50W |
| Operation conditions | 15C?~32?C Humidity ?85% |
| Dimension | 400mm?300mm?200mm(L?W?H) |
| Net weight | 11.5kg |
Brand
Brand
DIANLAB
About DIANLAB With headquarters in Straelen-Germany, DIANLAB GmbH is a diagnostic and laboratory equipment manufacturer and distributor with related reagents & consumables, patient monitoring equipment, medical imaging equipment, and other hospital equipment. Our mission is to offer the widest range of medical devices as a trustable ONE-STEP-SOLUTION supplier to hospitals, clinics, and laboratories around the world to speed up the human health improvement process. We have built up a wide range of diagnostic and laboratory equipment with the related reagents & consumables as a manufacturer through outstanding researched results. We cooperated with other reliable manufacturers in Europe as partners for the ONE-STEP-SOLUTION human health mission and established other product ranges, including Patient Monitor, ECG, Ultrasound, Color Doppler, OT table, OT light, and other hospital or laboratory devices. All of our products conform to European standard quality, with CE certificate marked. To pursue our mission of improving human health worldwide, DIANLAB never stops its deep research to develop more and more trusted products.
