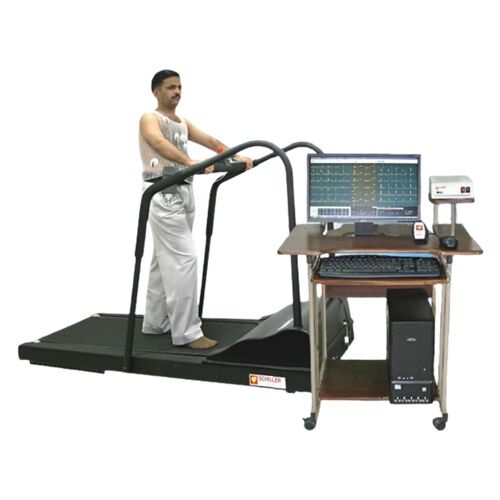

ETT Machine Schiller CARDIOVIT CS-20 Pc Base Blutooth System
Resting ECG:
- Simultaneous 12 lead acquisition
- Digital Signal Acquisition Module for noise-free and distortion free ECG
- Multiple color schemes, 12 lead raw rhythm,
12 average complexes, 1 enlarged QRS complex on a single screen - In-built data management system
- Axis and interval measurements
- Auto Replay and Export function
- User selectable screen formats and print formats
Exercise ECG:
- Digital Signal Acquisition Module which eliminates noise and gives distortion-free ECG signal
- Display and printouts of 12 leads RAW ECG during Exercise mode
- Full disclosure of all 12 leads
- The12 lead RAW ECG Data is stored for the entire test and can be
reviewed, reanalyzed, beat by beat - Facility to view, compare and print Average Complex, ST graphs
and tables of all 12 leads for all stages - Laser printer provides high quality stage-wise printouts on ordinary
A4 sized paper, saving on cost of consumables - The final report includes information for Blood Pressure (entered manually),
Heart Rate, Speed/Grade ST Trends, relating to stage-wise and Recovery
Phase - User selectable Iso-electric, J & Post J points during stress test
- Enlarged QRS complex with Dynamic Scanning
- Clinical history, medication, End Point Criteria are all pre-formatted
- User can edit Summary Report and can change BP, ST level and slope, HR
values, medication, etc. before taking a print - User selectable Protocols and stress information
- Time based METS calculation
- Online Linked Median printing
- Treadmill Soft Stop option for stopping the treadmill after 20 seconds in
Recovery Mode - Customized Lead Sequence for Display
- 6 Choice of displaying Lead with Maximum ST Level Depression or
Elevation in the Average Complex - Identity Card ECG printout
Recommended PC Configuration
- Min. requirement is a PC, Laptop or Notebook computer with:
Pentium IV, 3.0GHz processor with CD RW / DVD Combo Drive 52X - Intel 915GAV Chipset motherboard, 2MB Cache
- RAM – 512 MB / 1GB DDR
- ATX Cabinet with SMPS
- 2 Serial Port
- 2/4 USB Port
- Multimedia Keyboard
- Logitech Scroll Optical Mouse with Pad
- Onboard Graphics & Sound Card
- Windows XP Home Edition Licenced User Copy
- 17″ LCD TFT Screen
- HP Black and White Laser printer
Spirometry (Optional)
- Pneumotach sensor for accurate reading
- Comprehensive Pulmonary Function testing with four measurement
programs for inspiratory and expiratory tests – FVC, SVC, MVV, MV - System uses Indian, European and various other Norms
- Uses ATS standards for Accuracy of measurement
- Patient incentive screen for easy test performance
- Storage and user selectable printing
- Auto-intepretation/diagnosis with “interpretation Quadrant”
- Choice for deriving interpretation from either FVC or SVC
