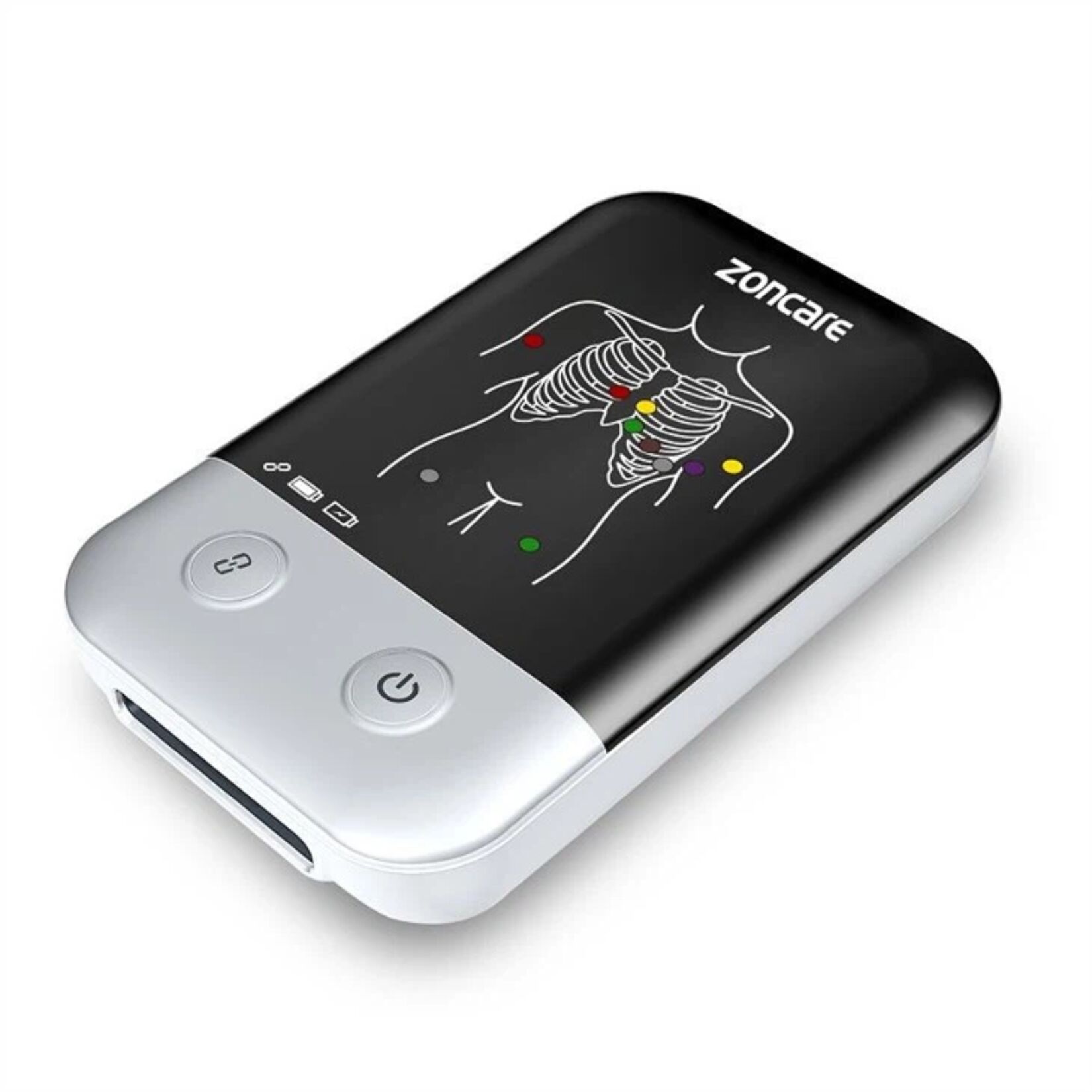

iMAC10 PC BASE 12 Channel ECG Machine

Zoncare provides a proprietary wireless sampling module ,bringing a new ECG experience
with familiar resting ECG operations on both smart phone, tablet and PC.

Main Advantage

•  It adopts a unique high-precision digital filter to prevent baseline drift and other interference without causing waveform distortion. It enhances the ability of anti-baseline drift, which is convenient to interpret the waveform.
• The ECG acquisition Unit for telemedicine wirelessly transmits the ECG data to the PC via Bluetooth.
• There are only two buttons in the whole machine. The operation method is flexible and simple, which reduces the workload and improves work efficiency.
• Built-in lithium battery , continuously work ≥6 hours.

Standard Configuration

• Power voltage:：DC 3.7V;
•  Power frequency：AC100-240V,50/60Hz
•  Continuous operation time：≥6h;
•  Front-end acquisition mode: A/D sampling. A/D digits are not less than 24 digits. The effective sampling is not less than 32000 samples per second (or  32000Hz/channel);
•  Gain: the equipment is available in 40mm/mV, 20mm/mV, 10mm/mV, 5mm/mV and 2.5mm/mV and automatic .; Gain accuracy is ±3%;
•  Paper speed:：5mm/s,6.25mm/s,12.5mm/s,25mm/s and 50mm/s

Packaging

•  Digital ECG device
•  User manual
•  Workstation software
•  ECG Cable
•  Electrodes adapter
