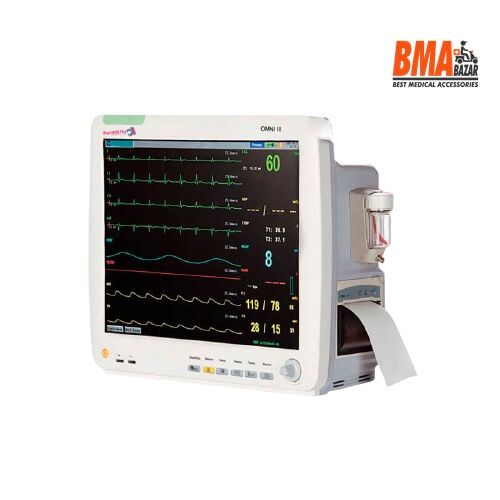

Infinium OMNI III Patient Monitor
Description:
- 15 inch Multi-Parameter Patient Monitor
- ECG, NIBP, SPO2, 2 x Temp. Respiration, Arrhythmia, ST, OXYCrg, Drug Calculation Field upgradable CO2, IBP, and Anesthesia Agents
- Up to 8 waveforms displayed
- Multi-lead simultaneous ECG monitoring
- Auto setting of alarm units
- Graphical/tabular trending
- Color coded alarms
- Patient data entry
- Battery backup (2 removable batteries)
- Networking capabilities
No other Patient monitor on the market today offers the advanced technology, reliability and cost-effective pricing available with the Infinium Omni III Patient Monitor. Physicians all over the world depend on medical technologies from Infinium Medical because they know that we place patient care above all else when designing our patient monitors.
INTUITIVE
Designed for a fast paced work environment, the Infinium Omni III Patient Monitor offers an extremely simple and adaptable user interface. Patient information along with vital sign settings can be quickly modified to meet the needs of a patients changing condition. The Omni III offers a high resolution 15 inch touch screen to optimize the speed of patient care. The user can therefore make quick screen adjustments, set default settings, alarm limits, and manage up to 72 hours of detailed patient data.
Infinium OMNI II Patient Monitor Specifications
- Display: 15” Color Touch Screen
- Trace: 8 waveforms
- Indicator
- Alarm indicator
- Power indicator
- QRS beep and alarm sound
- Trend time: From 1 to 72 hours
- Recorder
- Built-in, thermal array, 3 channels
- Record width: 48 mm
- Recorder paper: 50 mm
- Record speed: 25 mm/s, 50 mm/s
- Input: 5 lead ECG cable and standard AAMI line for connection
- Lead Choice: I, II, III, aVR, aVF, aVL, V, V1-V6, TEST
- Gain Choice: x0.5, x1, x2, x4
- Frequency Characteristic: 0.05 ~ 35 Hz (+3dB)
- ECG Waveforms: 7 channels
- Penetration Voltage: 4000 VAC | 50 – 60 Hz
- Sweep Speed: 12.5, 25, 50 and 100 mm/sec
- HR Display Range: 30 ~ 300 bpm
- Alarm Limit Range
- Upper limit: 100 ~ 200 bpm
- Lower limit: 30 ~ 100 bpm
