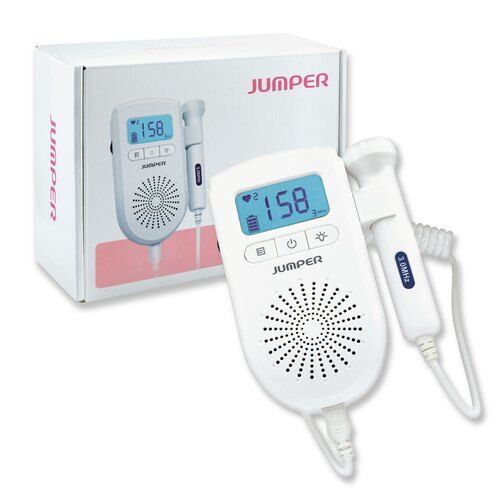

JUMPER Fetal Doppler Heartbeat Detector JPD-100S6
JUMPER Fetal Doppler Heartbeat Detector JPD-100S6
Specifications
| Product name | Fetal Doppler JPD-100S6 |
| Safety | Complies with IEC60601-1: 2006 |
| Suitable using range | Suitable for use after the 12th week of pregnancy |
| LCD display | 44.5x23mm |
| FHR measuring range | 50~240BPM (beat per minute) |
| Resolution | 1 BPM |
| Accuracy | +/-2 BPM |
| Nominal Frequency | 3.0MHz |
| Working Frequency | 3.0MHz (+/-10%) |
| Power consumption | <0.8W |
| Auto shut off | After 1 minute no signal, power off automatically |
| Power supply | 2×1.5V AA LR6 batteries (not included) |
| Size | 130x100x36mm |
| Weight | About 250g |
| Working temperature | 5~40C |
| Working humidity | <80% |
| Working atmospheric pressure | 70kPa~106kPa |
| Storage temperature | -10~55C |
| Storage humidity | <93% |
| Storage atmospheric pressure | 50kPa~106kPa |
Description
JUMPER Fetal Doppler Heartbeat Detector JPD-100S6
Description
This fetal doppler is a hand-held obstetrical unit, which can be used in hospital, clinic and home for daily self-check. It is specially designed for family of pregnant woman to conduct daily inspection of Fetal Heart Rate (FHR) by themselves. It contains components of ultrasonic signal transmitter and receiver, analog signals processing unit, FHR calculating unit, LCD display control unit etc. The fetal doppler is a high performance model with (fetal heart rate) LCD digital display. It has 3 work modes: Real-time FHR display mode, averaged FHR display mode, and manual mode. All three models have audio output, and can be connected with earphone or recorder with audio input. It uses standard 1.5V DC alkaline batteries (2pcs).
Features
- Battery status indicator
- Low power inspection of the battery
Three modes: Real-time FHR, Averaged FHR, Manual mode. - Built-in speaker
- Output for headphones
- The probe can be changeable
- Probe inspection
- Backlight display.
- Auto shut off
- Standard: 3M straight probe
- Two pieces of standard 1.5V alkaline battery available which can work no less than 10 hours (not included the batteries)
Brand
Brand
JUMPER
Shenzhen Medical Equipment Jumper Co. Ltd., founded in 1998, is a national high-tech company providing solutions for smart medical equipment for maternal and child healthcare, research and development, production, sales and service. Jumper passed ISO13485:2003 (Regulatory Medical Device-Quality Management System Requirements) and received CE, FDA, SGS, CMDCAS, INMETRO and CFDA certifications from its products. Over the past few years, Jumper has acquired over a hundred patents and copyrights for software. The products of Jumper are sold nationwide in more than 30 provinces and cities and are exported to more than 70 countries and regions. The AngelSounds product series accounted for 30 percent of Europe and the U.S. market, the best seller of which has been the Fetal Doppler over the past few years. In China, the products and services of Jumper are available in over 700 national hospitals. Jumper's products consist of intelligent maternal and child information systems (Perinatal Health Management System, High-Risk Maternal Management System, Intelligent Maternal and Child Follow-up System), supplementary smart wearable medical devices including Fetal Monitor, Fetal & Maternal Monitor, TENS Therapy, Infrared Thermometer and Pulse Oximeter, etc.
