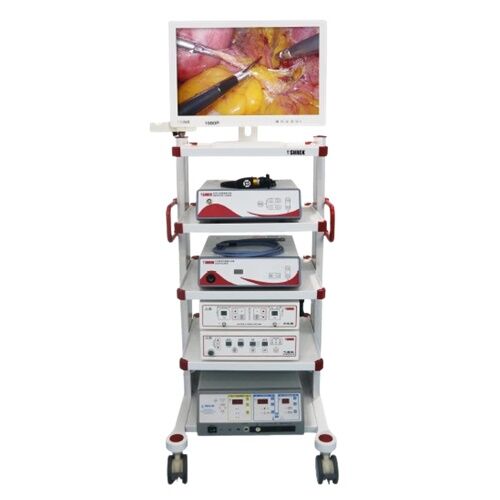

Laparoscopy Full Set SHREK China

Medical Monitor (BT240S):

• 24″ HD Medical grade screen, Dimension ratio: 16:9
• Input signal: DVI, VGA, CVBS
• Power supply:AC100~240V 50/60HZ
• Power:40VA
• Horizontal Resolution:1920*1080
• Anti-jamming processing

Medical Endoscope FHD Camera 1080P (SY-GW800C-N)

• Effective Pixels:1920*1080;
• Progressive scanning;
• Full hd camera 1080P;
• Anti-jamming processing;
• Horizontal Resolution:1080P(1000lines)
• Video Output: HDMI*4, SDI*1, BNC*1, VGA*1
• Manual/ auto white balance ;
• SNR (Signal to Noise Ratio): ≥50dB
• Digital zoom: 0-60X ;
• Brightness: ODS adjusting
• Language: English, Chinese
• Application: Laparoscopy, ENT, hysteroscopy, arthroscopy, urology,

HD Camera Head (SY-GW800C-N.1)

• Freeze button; White balance

Optical Coupler (SY-PC008)

• 28mm Waterproof

Led cold Light Source (SY-GW800L-N)

• LED light
• Power : 80watt
• Color temperature: ≥6500k
• Light image temperature: ≤80℃
• Digital display with cooling fan Working life is more than 20,000hours With timer function
• Application: Laparoscopy, ENT, hysteroscopy, arthroscopy, urology,

Light Guide Cable (SY-PC012): 2.5meter, standard diameter

Co2 Insufflators (SY-GWQ300)

• Rated power: 40VA;
• Range of flow:10-30L;
• Range of pressure: 5-30mmHg;
• Noise: ≤50dB;
• Power: 100-240V, 50/60Hz;
• Application: laparoscopy surgery

Electrosurgical unit (SY-DP300)

Adopting Automatic Power (P.A.C)system to maintain stable power when cutting tissues with different impedance. Three output ports:one for monopolar cut,one for monopolar fulguration and one for bipolar coagution. Six working mode:regular cut .blended cut-I, bledded cut-II, single spot coagulation, spurt coagulation amd bipolar coagulation. Independent power ofr electrical cut,electrical coagulation and bipolar coagulation Suitable for endoscopic surgery. Maximal out-put power: less than 400W

Endoscopic pump (SY-GWC200)

• Washing and suction the effluent or fragment in the enterocoelia surgery
• Rate power: 50VA
• Range of pos-press: 10~50kPa
• Range of neg-press: -50~ -10kPa
• Power: 100-240V, 50/60Hz
• Application: laparoscopy surgery

Trolley (SY-BT716)

• 670*610*1310mm
• Material: metal
• Suitable robust and corrosion resistant trolley with five-storey shelves with suitable distance between the shelves. The trolley is provided with castors and two ofthe castors are lockable.

Laparoscopic Hand Instruments

1. Laparoscope (SY-JF002): 5*290mm, 0degree (1pc)
2. Veress needle (SY-QF050): 100-150mm (1pc)
3. Trocar (SY-QF029.2): 5mm (2pcs)
4. Trocar (SY-QF029.3): 10mm (2pcs)
5. Sealing cap (SY-QF037): 5mm (10pcs)
6. Sealing cap (SY-QF037): 10mm (10Pcs)
7. Reducer (SY-QF015.3): 10 to 5mm (2Pcs)
8. Dissecting forceps, curved (SY-QF064): 5*330mm (1Pc)
9. Non traumatic grasping forceps (SY-QF078): 5*330mm (1Pc)
10. Scissors, straight (SY-QF059): 5*330mm (1Pc)
11. Scissors, curved (SY-QF060): 5*330mm (1Pc)
12. Electric hook (SY-QF008.1): 5*330mm (1Pc)
13. Cable for monopolar forceps (SY-QF004): (1Pc)
14. Bipolar electric coagulator forceps (SY-QF001.4): 5*330mm (1Pc)
15. Cable for bipolar forceps (SY-QF003): (1Pc)
16. Titanium forceps (SY-QF018): 10*330mm (1Pc)
17. Clamps (SY-EH002.3) M (1Pc)
18. Knot pusher (SY-QF054): 5*330mm (1Pc)
19. Needle holder (SY-QF040): 5*330mm (1Pc)
20. Suction and irrigation tube (SY-QF012.2): 5&10mm (1Pc)
21. Sterile plastic sleeve (SY-EJ001): Disposable (50Pcs)
