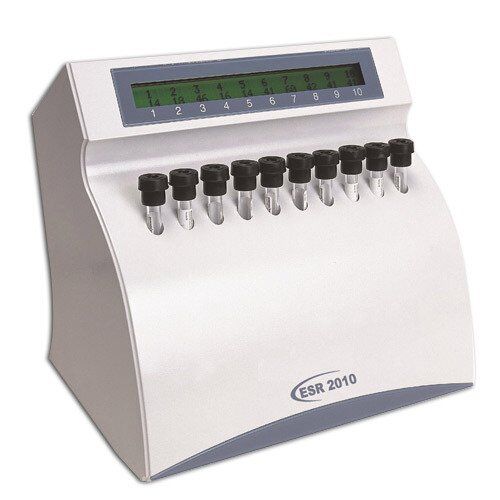

MINDRAY ESR-2010 Erythrocyte Sedimentation Rate Analyzer
Mindray ESR-2010 Erythrocyte Sedimentation Rate Analyzer
Technical Specifications:
- Area of application: Blood Sedimentation Rate Analysis
- ESR tubes: 9 * 120 mm, 1.28ml Vacuum / Non – vacuum
- ESR Loading Capacity: 10 samples maximum
- Loading Pattern: Random Access (V4.0) ; 10 samples batch (V6.0)
- Duration: 20 samples per hour
- Analysis time: 30 minutes (V4.0) and 30 & 60 minutes (V6.0)
- Results: in Westergren mm / h (by interpolation)
- Test tube: 1.1ml ~ 1.28 ml blood (non – vacuum ESR tube)
- Temperature correction: autocorrected results to 18 ° C (Manley Table)
- Principle of measurement: infrarot (IR) detection, transmission reading initially and during 30/30 & 60 minutes of sedimentation Reading resolution: + /- 0,2 mm ;
- Result resolution: + /- 1 mm Measurement range: 1 – 140 mm / h *
- Reproducibility: C.V < 5% Display: LCD with backlight interface: LPT
- Standard operating temperature of the printer: 15 °C to 30 °C
- Dimensions (w x h x d): 22 cm x 21.6 cm x 17.5 cm Weight: 2.5 kg
- External power supply: 110 – 220V AC
- ESR 2010 V6.0 (Batch Analyzer) provides 1 hour and 2 hours of ESR results in 30 minutes and 60 minutes simultaneously,
- automatically adjusted to 18 ° C.
| Weight | 2.5 kg |
|---|
Description
ESR 2010
Automated Analyzer of Erythrocyte Sedimentation Rate
Features
- ESR 2010 V4.0, is Small; Compact; Desktop Random Access Analyzer
- 1 hour ESR results in 30 minutes, automatically adjusted to 18 °C (as per Manley)
- Holds 10 ESR tubes and provides 20 results per hour.
- Free – the closed system of total blood hazard, useful for the creation of a safe and healthy environment for the user
- No timing; temperature error and human error
- Good correlation to 1 hour Modified Westergren method
- Optional Stylus Printer graphical printing of results
- ESR results from 1 – 140 mm/hr is displayed on the LCD. The results are printed on the Stylus Printer more than 140 mm/hr if connected to the analyzer.
Brand
Brand
MINDRAY
Mindray was founded in 1991 and is one of the world's leading providers of medical devices and solutions with head office in China. In the fields of Patient Monitoring & Life Support, In-Vitro Diagnostics, and Medical Imaging System, we are firmly committed to our mission of "advancing medical technologies to make healthcare more accessible." Mindray has a sound global network for R&D, marketing and service.
