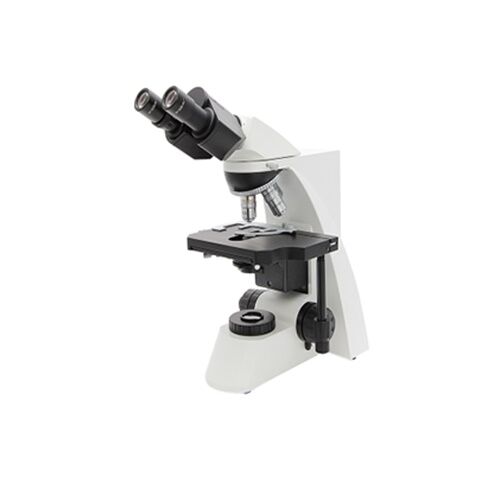

Optima Biological Microscope H-902N


Optima Biological Microscope H-902N

Specifications

Product Name Microscope
Brand Optima
Model H-902N
Observation tube Binocular head inclined at 30˚
Interpupillary distance From 55-75mm
Focusing Coaxial focusing knob, the coarse focusing range is 25mm and fine focusing is graduated in an increment of 2μm
Stage Large mechanical stage with the size 210 x 140mm, X-Y travel is 50 x 75mm with the graduation of 0.1mm
Eyepiece WF10X/20
Objective Plan achromatic PL 4X, 10X, 40X (spring), 100X (spring) oil
Condenser N.A. 1.25 Abbe condenser with iris diaphragm
Koehler illumination 6V20W halogen lamp with adjustable light intensity
Power supply 110V or 220V
Standard accessories Dust cover, immersion oil, blue and green filters, backup lamp
Optional accessories WF10X/20 eyepiece with 10/100mm scale, PL20X or PL60X objective, simple polarization attachment, phase-contrast attachment
Price

৳ 85,000

OPTOMA

Optima Biological Microscope H-902N

Description

The most common features, including a movable ABBE condenser and a strong 100X (oil) objective, are loaded with the OPTIMA® biological research microscope H-902N. A heavy, sturdy frame is based on this scope. 10X/20 high eye-point eyepiece, reverse nosepiece for quick access to the stage, and bright halogen lighting of 20W are standard features. A variety of optional accessories may also be fitted with the lens, including basic polarization, phase contrast, and a number of different objectives.

  • The field of view is large and transparent with a wide-field eyepiece and plan achromatic objectives.
  • It can be widely used for biological medicine, agriculture, and industry.
  • It is the perfect method for medical care, demonstration training, and scientific study.
  • Coaxial coarse/fine focus device with voltage change and up stop, a fine focusing minimum division is 2μm.

Brand

OPTIMA

Optima Lab Solutions (Pty) Ltd., doing business as Optima Solutions (OS), was founded with the aim of providing high-quality equipment and services to South Africa and its neighbors. We have a combined 35 years of experience in the laboratory and manufacturing industries, which has enabled us to develop important relationships with major corporations.
