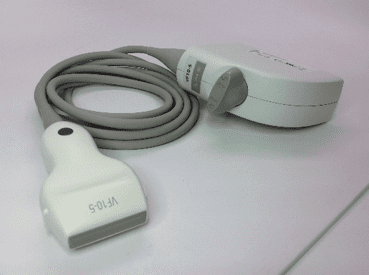

Product Details

• Frequency Bandwidth: 4.0 – 11.4 MHz
• Selectable 2D Frequencies: 6.2, 8.0, 10.0 MHz
• Selectable THI Frequencies: 4.0, 4.7 MHz
• Selectable Color Doppler Frequencies: 5.3, 6.2 MHz
• Selectable PW Doppler Frequencies: 5.3, 6.2 MHz
• 2D Steering Angle: max +/- 15º
• Color Doppler Steering Angle: max +/- 12º
• PW Doppler Steering Angle: max +/- 12º
• Number of Elements: 128
• Footprint: 38.4 mm
• Maximum Field of View: 102 mm
• Maximum Display Depth: 100 mm
• Biopsy Guide: SG-3 Needle Guide Kit, PN 7296481
• Biopsy Guide Angles: 52° (A), 40° (B)

Design Attributes

• Wide bandwidth curved array transducer
• Virtual format imaging
• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• Lightweight transducer with flexible cable

Applications

• Breast
• Cerebrovascular
• Emergency Medicine
• Musculoskeletal
• Orthopedic
• Peripheral Vascular
• Testicle
• Thyroid
• Venous

Compatible Systems:

• ACUSON X300 ultrasound system
• ACUSON X150 ultrasound system
• SONOLINE G40 ultrasound system
