Wireless X-Ray CSL17X17 FPD Flat Panel Detector DR/Portable SONTU 50 Series

৳ 1,400,000.00

sontu Medical

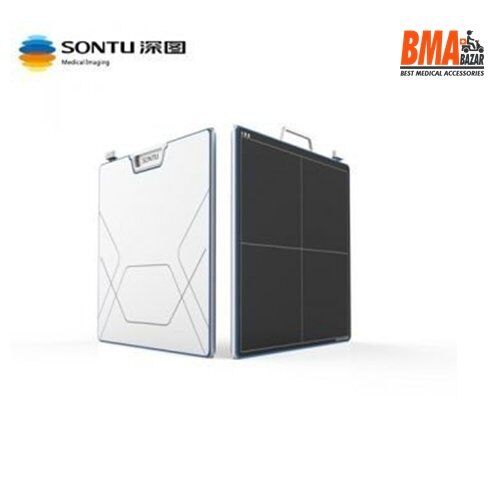

SONTU 50 Series FPD Flat panel detector DR/Portable wireless X-Ray CSL17X17

SONTU FPD Technical Parameters
Model 17X17
Detector type Amorphous Silicon Flat Panel Detector
Scintillator type CSL
Pixel Matrix/mm±0.5  430*430
Resolution 3072*3072
Pixel Pitch/um 140
Limiting Resolution  ≥3.4Lp/mm
A/D Conversion/bit 16
Sync mode  Fixed integral
Imaging time/S  ≤2
Image transmission Gigabit Ethernet
Weight/kg±0.05 4.08
Detector size/mm±0.5  462*477*16.1
Power input of power box/V  100~240VAC
Power 25W
protection from electric shock CLASS B
Ingress Protection  IP54
Working temperature(℃)  5~40
Working humidity(%RH)  15~90
Storage temperature(℃)  -20~+50
Storage humidity(%RH)  10~90
Irradiation hardness/GY 150

Product Video Link

Available on backorder

Description

SONTU 50 Series FPD Flat panel detector DR/Portable wireless X-Ray CSL17X17

Highlights of SONTU50 Series

  • Portable
    Providing the best portable Retrofit solution according to the existing models using in the hospital, with wired transmission mode.
  • High compatibility:
    Compatible with cassette and imaging plate size, without changing the original structure of the X-ray machine.
  • Low-budget
    Helping hospitals to invest at a lower cost to obtain image quality and clinical applications with the same effect as the purchase of new DR.
  • 3 years of free warranty
    Stable and reliable, SONTU provides a free warranty for 2 years.
  • DICOM interface
    With the standard Dicom interface, the software can realize X-ray images taking, processing and printing. It can transmit via cables to the PACS system at high speed.
  • Low radiation, high-definition images
    Large exposure latitude reduces radiation dose inpatients and provides high-resolution clinical diagnostic images.



Brand

Brand

SONTU

SONTU is a national-level high-tech organization committed to R&D, engineering, and research and development. Medical imaging device manufacturing and facilities. SONTU is one of the top three healthcare schools in the country. and over a decade of experience in the sector in China. SONTU is headquartered in Shenzhen, China, and has 28 offices throughout the country. There are over 7,000 installation locations in the United States and around the world. SONTU's company is currently secured. Africa, Latin America, and Southeast Asia are among the more than 20 countries and regions represented. Asia, South Asia, and the Middle East, to name a few. The flat panel is available from SONTU in a variety of product lines. standard DR & dynamic DR, clever medical test (for both human and veterinary use) SONTU Smart DR (Intelligent height recognition, Virtual dual-energy) is a vehicle, dental imaging devices, and SONTU Smart DR (Intelligent height recognition, Virtual dual-energy) subtraction, and sewing the whole length of the garment).   The goal of SONTU is to "facilitate the continuous growth and advancement of the global community." “Be the best brand in field and the first choice for medical quality and welfare,” says the company, with a mission to “Be the best brand in field and the first choice for medical quality and welfare.” clients,” devoted to the advancement of DR goods in the future. The importance of the substance and the care with which it is handled SONTU promises consistency, service quality, and a high quality of life.
