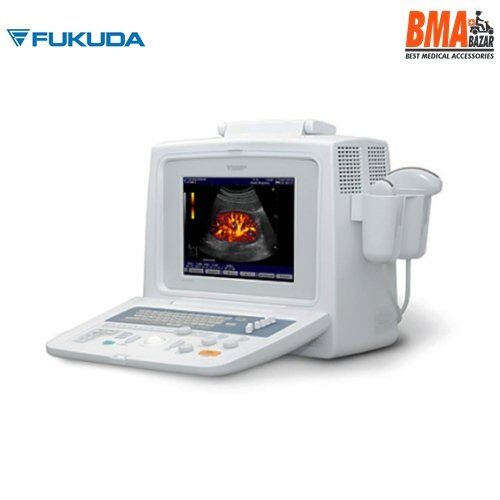

Ultrasound Machine FUKUDA UF 750-XT
৳ 700,000.00 Original price was: ৳ 700,000.00.৳ 680,000.00Current price is: ৳ 680,000.00.
Ultrasound Machine FUKUDA UF 750-XT
Specifications:
Product Name | Ultrasound Machine |
Brand | FUKUDA |
Model | UF 750-XT |
TFT display | Color LCD, screen size 10.4 inches (26.5 cm), (resolution 800×600 pixels), “SVGA”. |
Display modes | IN; W / M; PWD; CFM color mapping |
The main dimensions of the device | 380x222x370 |
Serial port | Two USB (USB 1.1) ports |
Network communication | “Ethernet” (10BASE-T / 100BASE-TX) |
Image Archiving | Magnetic Optical Disc (JPEG / BMP) 3.5 inches (can store up to 6000 frames) |
Nutrition | Alternating current 100-240V 10%, 50/60 Hz |
Power consumption | About 120 watts. |
View | For M, PWD modes, 4 pages |
Scan Methods | Linear, convex, micro convex |
Out col. fig. | One S-video connector for an external color video printer or video. |
Out b / w image | One BNC connector for external video printer and NTSC or PAL system |
Basic measurements | Distance, heart rate, area, perimeter, left ventricular blood flow LV-in flow, ripple rate “PI”, volume |
rate, left ventricular function, gestational age, expected birthday, fetal weight, aortic valve area “AVA”, cardiac output “ CO ”,“ Tei ”- index | |
Adjust image settings | Dynamic range, color scale, gain, depth sensitivity adjustment, frame correlation, post-processing |
Sensors | |
FUT-CD152-5A | Microconvex sensor 2.5 / 3.5 / 5.0 MHz 15R |
FUT-CD105-8A | Microconvex sensor 5.0 / 6.5 / 8.0 MHz 10R cardio. pediatrics |
FUT-CD602-5A | Convex sensor 2.5 / 3.5 / 5.0 MHz 60R (for gynecology and obstetrics) |
FUT-LD386-9A | Linear sensor 6.0 / 7.5 / 9.0 MHz 38 mm (surface organs) |
FUT-TV-114-7A | Transvaginal transducer 5.0 / 6.0 / 7.0 MHz 11R |
FUT-CD505-8A | Convex sensor 5.0 / 6.5 / 8.0 MHz 50R (for pediatrics, abdomin. Research) |
Additional accessories | |
UCW-01 | truck |
Video printer | Black and white |
UF-750XT-BIU | Block of physiological signals |
Video printer | color |
UF-750-3DU | 3D block |
UF-750XT-PSU | Sensor Switching Unit |
Instrument weight | about 13 kg |
Note: Ultrasound Machine With 1 Convex Probe & 1 linear Probe.
Ultrasound Machine FUKUDA UF 750-XT
Product Description:
The Fukuda UF 750-XT multifunctional ultrasound unit is small in size and relatively light in weight, making it versatile and lightweight. It allows linear and convex scanning with color mapping and color doppler to be done.
Gynecology, obstetrics, gastrointestinal examinations, cardiovascular exams, as well as the study of the condition of superficial organs, mammary gland, and thyroid gland are the main areas of operation of the Fukuda UF 750-XT ultrasound machine.
Due to a wide range of scanning modes, a collection of multi-frequency broadband sensors, the system allows you to perform the highest quality diagnostics. At the same time, it should be noted that in tissue harmonic mode, micro convex and convex sensors, which are the main ones for this model, work.
Another advantage of the Fukuda UF 750-XT is the stationary device’s consistency and functions, given the scanner’s portability. The computer has the mode of autofocus, mode of data archiving, XT processing, high resolution and accurate image quality, mode of film loop. Thanks to the color mapping mode and the strong Doppler energy feature, low-speed and weak bl can be studied.
The user can manually and automatically operate the computer. The app is also useful in that it has an extended menu of features. Using the UF-750XT-BIU ECG biological signal block or the attachment of two UF-750XTPSU sensors, the range of functions of this model can be extended if appropriate.
