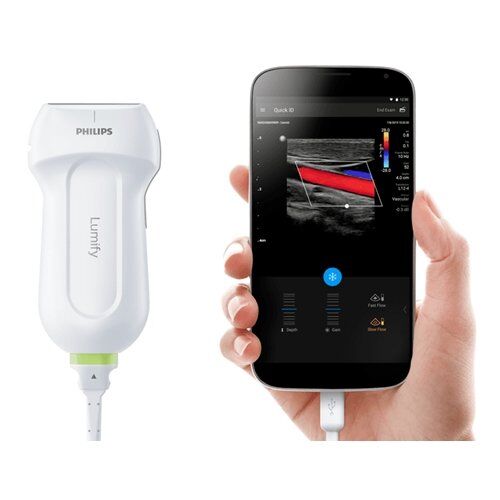

Philips Lumify Ultrasound System L12-4 Linear
Philips Lumify Ultrasound System L12-4 Linear Transducer can be connected to Android Devices. Smallest Portable smartphone USB ultrasound for MSK, Superficial, Small Parts, Breast, Thyroid & Duplex Imaging. Get exceptional quality ultrasound imaging with Philips ‘ latest app-based ultrasound solution, Lumify, on your compatible smart device. It is a reliable and comprehensive solution that provides ultrasound point-of-care technology with ease, versatility, and flexibility.
Key Features
- Combines the exceptional quality of Philips imaging technology with the mobility and connectivity of a compatible smart device
- Offers app-based ultrasound with accessible pricing
- Provides an intuitive interface to help guide decision-making for a confident treatment plan
Overview
System Architecture
- A next-generation micro-digital broadband beamformer
- Microfine 2D focusing with dynamic focal tuning
- Dynamic range up to 170 dB (full-time input)
- 65,536 digitally processed channels
- SonoCT real-time beam-steered compound imaging
- XRES adaptive image processing
- AutoSCAN: no-touch continuous intelligent optimization for 2D
- Gray shades: 256 (8 bits) in 2D
- Acquisition frame rate: up to 79 frames per second in high frame rate mode (dependent on field of view, depth, and angle)
- Power save mode that automatically senses when you are not actively scanning and reduces frame rate then automatically resumes full rate when you resume scanning
- Tissue Harmonic Imaging
Imaging Modes
2D mode
- Microfine 2D focusing
- AutoSCAN
- Digital reconstructed zoom up to three times with pan capability with intuitive multi-touch control
- Cine loop image review (up to 10-second loop length)
- 256 (8 bits) discrete gray levels Philips microfine 2D focusing
- Intuitive “Pinch” to zoom and “Touch” to pan image
- Full-screen mode
- Available in live-imaging or review
Color Doppler
- Gain 0 to 100 in steps of one
- Cineloop review
- Velocity display
- Touch-controlled color Region of Interest: size and position
- Touch-controlled color steering
- Maps, filters, color sensitivity, scale, line density, smoothing, echo write priority, color persistence, gain, and baseline optimized automatically by preset
M-Mode
- Available on all transducers
- Time markers: 0.2 seconds
- Simultaneous live 2D image
Image Optimization
SonoCT real-time compound imaging
- High precision beam-steered image compounding acquires additional tissue imaging information compared to orthogonal beams and reduces angle-generated artifacts
- Enhanced needle visualization
- Multiple beam-steered lines of sight
- Operates in conjunction with harmonic and XRES imaging
Tissue Harmonic Imaging:
- System processing of second harmonic frequencies (nonlinear energy) in tissue
- Extends high-performance imaging capabilities to most patient body types
- Available in 2D imaging mode
- Image display with reduced artifacts
XRES adaptive imaging processing:
- Enhances images without altering the image resolution
- Reduces artifacts, enhances contrast resolution, visibility of tissue texture patterns, and border definition
- Available in 2D, zoom, post-freeze, and when capturing loops
- Applied to grayscale 2D image data
- Specifically optimized for each clinical application
AutoSCAN intelligent optimization:
- No-touch continuous intelligent optimization
- In 2D mode, automatically identifies tissue type and continuously adjusts TGC and receiver gain to achieve tissue uniformity and brightness
- Full-screen mode
- Available in live-imaging or review
Touchscreen interface
- Multi-touch user interface
- Alphanumeric QWERTY soft keyboard with Android voice recognition
- Imaging mode keys: 2D and color Doppler
- 2D image controls: depth, freeze, gain, and power
- Depth to 30 cm (exam-specific)
- Measurements: 2D distance calculation; M-mode calculation
- Color Doppler controls: angle, scale (fast/slow flow), gain
- Image acquisition keys: review, save the image, and save loop
- Annotation controls: text and erase
Workflow
Home screen
- Simplified home screen for quick access to scan, create a patient profile, and select presets
- Four clinical application presets (C5-2)
- Five clinical application presets (L12-4, S4-1)
- Main menu
- Configurable cardiac image orientation
Display information:
- On-screen display of all pertinent imaging parameters for complete documentation, including transducer type and frequency range, active clinical options and optimized presets, display depth, grayscale, color map, color scale, frame rate, 2D gain, color gain, color image mode, and patient name
- Depth to 30 cm (exam-specific)
- Real-time display of Mechanical Index (MI)
- Real-time display of Thermal Index (TIb, TIc, TIs)
- Annotation text – places, moves, erase, modifies, or appends typed text and arrows
- Annotation erased with the start of a new study
- On-display centerline marker aligned with transducer centerline marker
- End Exam – closes study and returns the user to the home screen for efficient workflow
- Network connectivity icon to allow immediate feedback about network condition
- Battery status icon and warning to allow immediate feedback about battery condition (depending on the compatible smart device chosen)
Cineloop review
- Acquisition, storage in memory, and display in real-time of up to 10 seconds of 2D and color images
- Images for retrospective review and image selection
- Slide control of frame-by-frame image selection
- Functions in 2D and color Doppler imaging modes
Connectivity
- Patient data storage on the device
- Configurable barcode reader software utilizing device camera
- DICOM modality worklist (query retrieve)
- Direct digital storage of single-frame color and B/W images to internal hard disk
- Direct digital storage of B/W and color loops to internal hard disk
- Ability to export in PC format (MP4 clips, PNG images) via email or direct connection to PC
- Extensive image management capability, including thumbnail image review
- Exam directory
- DICOM image store
- Export to the network share drive
- User may email patient exams
- Option to configure patient data in the DICOM header and images (not DICOM tags), as well as anonymize PC format images for exported images and loops
- Use Google Cast to mirror device screen to a secondary display.
