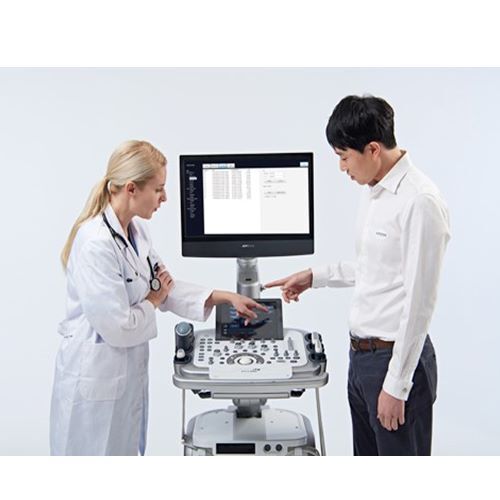

Alpinion Ultrasound E-Cube 15 Platinum

The E-CUBE 15 EX continuously provides velocity, throughput, and precision for those who require the greatest quality diagnosis for their patients in the most challenging of situations. ALPINION proprietary imaging techniques, designed transducer set, and intuitive application software are seamlessly integrated into the E-CUBE 15 EX. The unique FleXcanTM architecture of ALPINION, the software-based imaging platform, ensures uniform image quality and performance, and is easy to upgrade to the latest system level.

Physical Specifications

Width: 580 mm
Depth: 895 mm
Height: 1,205-1,750 mm
Weight: 105 kg (system only)
10.4 “high definition LED backlit LCD
Resolution: 1,024 X 768
16.2 M color display
Light and contrast adjustable (OSD)
Main processor: Intel Core i7-4700EQ 3.2 GHz
Main memory: 4 GB
SSD: 512 GB
21.5″ flat panel monitor and articulated arm
Front and back handle
4 active probe connectors
1 pencil probe port
4 rotating wheels
Integrated SSD
Installed DVD-R drive
ECG (optional)
Thermal printer storage
Installed stereo speaker
Installed cable management
Anti-dust probe connector door
System boot up: in 53 sec
100-120 V, 220-240 V, 50/60 Hz
Power consumption: Max. 900 VA
High-density transducer connector
Digital beam forming Triple multi-beam
FleXcanTM
SensitiViewTM
Crystal SignatureTM
MicroFitTM
Optimal Imaging SuiteTM
Raw data processing
Needle enhancement
Multi-layer transducer
Windows7 Embedded
21.5 “high-definition LED-backlit LCD
Resolution: 1,920 x 1,080 (16:9 wide)
16.2 M color display
Contrast: 1:1,000
IPS (In-Plane Switching) technology
Bright and contrast adjustment

Transducer Type

Convex
Micro-Convex
Endo Cavity
Linear
Phased
Volume
Electric motorized control panel adjustment- up/down: 170mm

Description

Alpinion Ultrasound E-Cube 15 Platinum

Excellent image quality assists you in making confident clinical choices. The superb quality of the image

Crystal SignatureTM —
Maximization of penetration to allow high-resolution imaging procedures
Improved basic 2D picture output —
New equipment to enhance 2D picture resolution, contrast and uniformity — Combined image optimizing the algorithm, Optimal Imaging SuiteTM Plus offers outstanding information, clearer boundary definition, and broader tissue grayscale.
Improved Doppler performance —
Two individual H / W architecture pulse monitor each 2D mode and Doppler signal independently — Improved Doppler picture quality
Write Zoom —
Improved resolution and picture pattern recognition of write zoom picture with improved S / W Beamforming performance — Improved visualization of tiny information such as fetal bodies.
Advanced XpeedTM —
A single touch of XpeedTM rapidly delivers optimized clinical pictures with smallest noise levels — Dynamic range levels can be identified and predicted in actual time to be automatically optimized with XpeedTM
Wide angle endovaginal transducers:
EV3-10X / EC3-10X — Wide max.230 degree FOV and high-resolution pictures to improve diagnostic precision and velocity.
High-frequency linear hockey stick transducer:
IO8-17 — Linear hockey stick type transducer with low footprint and high frequency is designed for the diagnosis of small areas such as fingers and toes
5 inch complete HD LED monitor —
High-resolution monitor of 1.920×1.080 pixels offering clear clinical pictures — Wider viewing angle featured by IPS (In-Plane Switching) technology to avoid switching.

Alpinion Official Website Visit:

Brand

ALPINION

ALPINION's creative and acknowledged ' E-CUBE ' principles of the ultrasound brand (' Extreme Clarity, ' ' Efficient Workflow, ' ' Ergonomic Design ') represent the technological philosophy of ALPINION. The concepts of ALPINION's revolutionary and recognized ultrasound brand 'E-CUBE' ('Extreme Visibility',' Effective Workflow',' Ergonomic Design') embody the technical philosophy of ALPINION that offers customers during the lifespan of the commodity with uniform picture consistency. Since we initiated our ultrasound company, ALPINION has concentrated on acoustic engineering and front-end technology. Traditionally, back-end processing in ultrasound has been highly focused; however, we moved attention to the front-end with an emphasis on the signal quality sent to system processors. ALPINION relies on continuous acoustic technological advancement. ALPINION has developed and added a variety of transducer array types to the groundbreaking E-CUBE series of ALPINION ultrasound systems. ALPINION actively aims to extend the medical industry from diagnostic ultrasound to clinical ultrasound on the basis of patented superior acoustic technologies.
