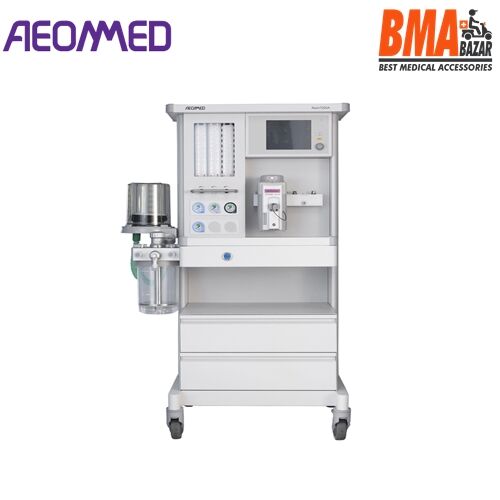

Anesthesia Machine Aeon7200A

Specifications:

Physical & Environmental Specifications

• Dimensions(H×W×D): 1356×845×620 mm
  • Weight: 110 kg (basic unit)
  • Storage temperature: -20~+55℃
  • Working temperature: +10~+40℃
  • Storage humidity: ≤93%

Electrical Specifications

• Mains: 100~240 V, 50/60 Hz
  • Battery: 24 V DC, minimum 120min
  • Mains outlet: 3

Pneumatic Specifications

• Gas supply: 0.28~0.6 MPa
  • Flowmeters: O2: 0~1 L/min; 1~10 L/min
  N2O: 0~1 L/min; 1~10 L/min
  • Gas system: Oxygen supply failure alarm
  Oxygen supply failure protection
  O2 flush: 25~75 L/min
  • Working mode: Closed, Semi-closed, Semi-open
  • Driven mode: Pneumatically driven and
  electronically controlled
  • Safety valve: ≤10 kPa
  • Operating mode: Man. / Vent.
  • Cylinder yokes: Optional

Ventilator Specifications

• Patient type: Adult, pediatric
  • Ventilation modes: IPPV, PCV, SIMV-VC, PS/CPAP
  (with apnea backup), Manual, Standby
• Setting: Navigator knob and touchscreen
  • Tidal volume: 20~1500 ml
  • Ventilation frequency: 2~100 bpm
  • I:E ratio: 4:1~1:8
  • PEEP: OFF, 3~30cmH2O
  • Inspiratory plateau: OFF, 5%~60%
  • Flow trigger: 1~15 L/min
  • Pressure support: 3~50cmH2O
  • Pressure range: 5~70 cmH2O
  • Monitoring display: Display: 8.4″ color touchscreen

Pressure: Ppeak, Pplat, Pmean, PEEP
Volumes: MV, Vt
Breath rate
Compliance
Gas: O2, CO2, Agent (all optional)
Graph display: P-t, F-t waveforms

• Alarm: High Airway Pressure/Low Airway Pressure
  High Minute Volume/Low Minute Volume
  High FiO2/Low FiO2 (when FiO2 function is enabled)
  Power failure
  O2 Supply failure, Apnea, ……
  Alarm Silence: ≤120 s

Vaporizer

• Supports 2 vaporizers (Selectatec® with interlock, optional

standby vaporizer parking holdera)

• Agent type: Halothane, Enflurane, Isoflurane, Sevoflurane
• Filling type: Pour-fill, Key-fill, Quik-fil®
