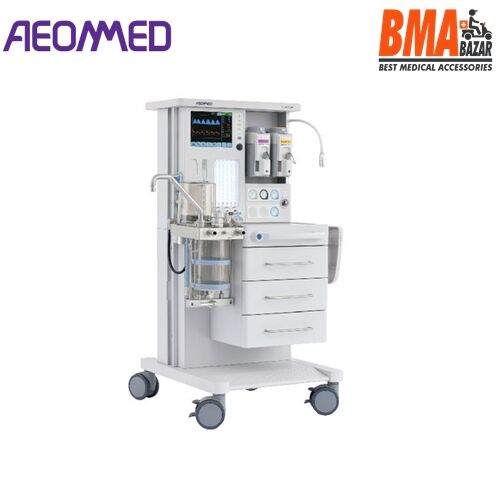

Anesthesia Machine Aeon8600A

Specifications:

Physical & Environment Specifications

• Dimensions (W×H×D): 704 mm × 1403 mm × 750 mm
• Weight: 115kg (including trolley base and 2 vaporizers,

without cylinder)

• Operation Temperature: 10 ~ 40 °C
• Operation Humidity: ≤80% (non-condensing)
• Storage Temperature: -20 ~ 55 °C
• Storage Humidity: ≤93% (non-condensing)

Electrical Specifications

• Mains: 100 ~ 240 V AC, 50/60 Hz
• Battery: 24V DC, minimum 120 min
• Outlets: 4 on back, 1.5A individual

Pneumatic Specifications

• Gas Supply: Air, O2, N2O; 280 kPa ~ 600 kPa
• Flowmeters: O2 Range: 0~1 L/min; 1 ~ 10 L/min

N2O Range: 0~1 L/min; 1 ~ 10 L/min

Air Range: 0~1 L/min; 1 ~ 12 L/min

Auxiliary O2 Range: 0 ~ 15 L/min

• Gas System: Flowmeter backlight

Oxygen supply failure alarm

N2O cut-off system

O2 flush: 25 ~ 75 L/min

• ACGO: Optional auxiliary common gas outlet
• AGSS: Optional anesthetic gas scavenging system

Breathing System Specifications

• Oper ational Modes : Closed, Semi – closed, Semi – open
• CO2 Canis ter : 2 Loose fi l l ( 3 L) or 2 pr epacks ,

optional single canister (1.5 L)

• APL Range: Spontaneous br eathing (SP) – 70 cmH2O
• Mater ial : Autoclavable ( except O2 cel l and airway

pr es sur e gauge)

• CO2 bypas s : Optional

Vent ilat or Specif icat ions

• Driven Mode: Pneumatically driven and electronically

controlled

• Patient Types: Adult, Pediatric
• Ventilation Modes: IPPV, PCV, SIMV+PS, PS and Manual
• Setting Modes: Touch key & navigator wheel knob
• Tidal Volume: 20 ~ 1500 ml
• Ventilation Frequency: 4 ~ 100 bpm
• I:E Ratio: 4:1 ~ 1:8
• Pressure (inspired) Range: 5 ~ 70 cmH2O
• Pressure (support) Range: 3 ~ 50 cmH2O
• PEEP: Off, 3 ~ 30 cmH2O
• Tslope: 0 ~ 2 s
• Inspiratory Plateau: Off, 5% ~ 60% Ti
• Trigger Sensitivity: 1 ~ 15 L/min
• Compensation: Compliance and leakage compensation,

fresh gas compensation and altitude compensation

Ventilator Monitoring

• Display: 10.4” TFT color screen
• Pressure: Ppeak, Pplat, Pmean, PEEP
• Volumes: MV, Vt, Freq
• Gas: O2 Concentration, optional CO2, Agent and MAC
• Graph Display: P-t, F-t, P-V, F-V loops (can be saved),

optional CO2-t

• Alarm: High Airway Pressure/Low Airway Pressure

Continuous airway pressure

High Minute Volume/Low Minute Volume

High FiO2/Low FiO2

High Breath Rate

O2 Supply failure

Power failure

Apnea Alarm

Alarm Silence: 110 s

Vaporizer

• Supports two vaporizers
• Agent: Halothane, Enflurane, Isoflurane, Sevoflurane
• Installation Mode: Selectatec® with interlock,

optional standby vaporizer parking holder

• Filling Type: Pour Fill, Key Fill, Quik-Fil®
