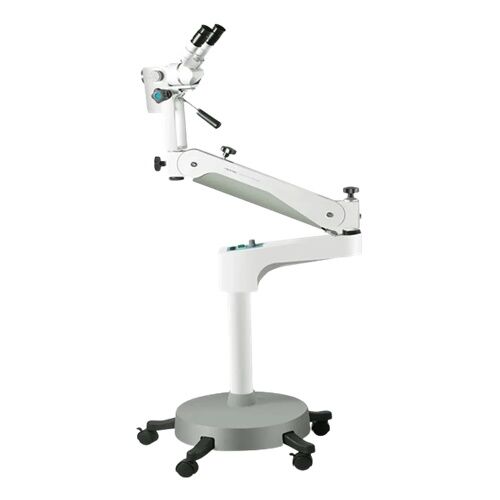

Colposcope Camera System Kernel 2200B
Colposcope Camera System Kernel 2200B
- MODEL: 2200B
- BRAND: KERNEL
- MANUFACTURER: KERNEL MEDICAL EQUIPMENT
- COUNTRY OF ORIGIN: CHINA
- CERTIFICATION: CE, USFDA & ISO
Features:
- High resolution and high defnition observation system
- LED light source,luminance can be adjusted freely
- Fast manual focus control,white-balance auto-adjustment.
- unique beam splitter design and HD CCD imaging trimming,makes imaging stereo,acquire the best observation effect for various level of lesions.
- Built-in scale,can measure the size of lesions.
- Five-step magnification and focus,strong stereoscopic effect,distinct gradation, large viewing.
- Equipped with green filter, easy to observe capillary of lesions.
- Flexible, convenient,lockable swing arm,barrier-free design,easy to adjust to any angle
- Multi-function management software with the ability of image observation,capture,video recording,freezing,editing,report printing and storage.
- Special Software package,with the function of acetic acid reaction countdown,applicable to dynamic observation of examination and operative treatment.
- support Win7/WIN8/ WIN10
Description
Colposcope Camera System Kernel 2200B
Specifications
KN-2200B optical and ditigal colposcope is combined binoular colposcope and video colposcope .
Application:
- Suitable for gynecology examination and cervical cancer early diagnose
- On the clinical, checkup with vulva, vagina, cervix and other part
Parameters:
- Binocular eyepiece focus:160mm, Built-in accurate measurement ruler
- Eyepiece: 12.5x, 45-degree eyepiece;
- Optional: 12.5x, 0 degree eyepiece;20x, 45 degree eyepiece;20x, 0 degree eyepiece
- Eyepiece adjustment range 50 ~ 75mm
- CCD part:1/3 inch sony CMOS, 2.1 million effective pixels
SYSTEM INCLUDED :
- Cantilever stand
- 1/3” sony CCD1 million pixels
- 5x Eyepieces, 45° and 0° eyepiece
- Optical System Optical System with splitter
- Green filter
- LED light source
- 300 Objective
- light source
- 8~17 optical magnification times
- Image size:1920*1080
- connection cable,
- Foot controller
Brand
Brand
kernel
Kernel Medical Equipment Co.,Ltd was set up in 1997,has focused on medical industry for 24 years. Kernel's main product include UV Phototherapy, LED photodynamic therapy and hair loss therapy.With our constant efforts,we developed and produced many new product in 2018, including excimer laser 308nm targeted phototherapy,hair loss therapy, wood's lamp. Except that, we also concentrated on colposcope and patient monitor for many years. With international advanced research and development test and quality control system,Kernel medical also a designated supplier of the United Nations.We also have branch company in United States,marketing agencies in the United Kingdom,Spain,Singapore and other country. Also,wehave more than thirty offices and three sales divisions and service centers in China. Kernel products are widely recognized by clients from domestic and overseas.As a large-scaled stock enterprise ,Kernel Medical Co.,Ltd dedicates itself to R&D,manufacturing,marking and service of hi-tech oriented medical equipment. Kernel emphasizes the importance Of market construction and expansion both at home and abroad. Now there are over hundreds of distributors in the domestic market and abroad.The excellent after sale service and flexible market operation mechanism enlarges and perfect its international networks of marketing and service.
