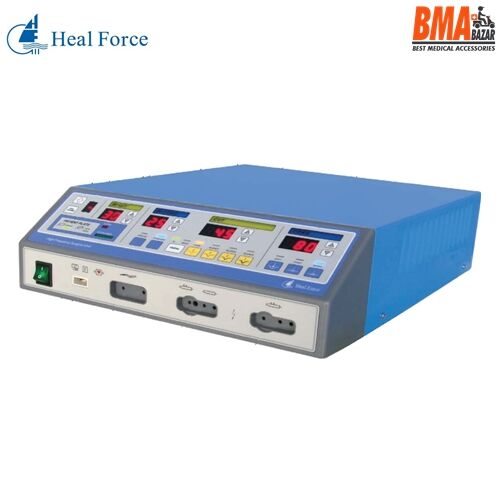

Electrosurgical Diathermy EB-03 Healforce
Electrosurgical Diathermy EB-03 Healforce
Features:
EB-03 can be used in various operations such as general surgery, dermatology, plastic surgery, endoscopy, vascular surgery, heart / thoracic surgery, minimally invasive surgery, and ophthalmology.
Cutting mode : Pure: | 350\150W \500 Load\1800V\1200\1.5 Crest Factor. |
Cutting mode : | Blend1:300\120 W \500 Load\ 2700\2000V\1.9 Crest Factor. |
Cutting mode : | Blend2: 200\80W \ 500 Load\ 2400\1700V\ 2.3 Crest Factor. |
Cutting mode : | Blend3:150\60W\ 500 Load\ 2900\3000V\ 3.1 Crest Factor. |
Coagulation mode : | Point: 100\70W\ 500 Load \ 4.600\3900V\ 4.5 Crest Factor. |
Coagulation mode : | Soft: 100\70W\ 500 Load\ 3600\3300V\ 6.1 Crest Factor. |
Bipolar | |
Coagulation mode : | Standard: 50\50W \ 100 Load \ 600V\ 1.5 Crest Factor. |
Accessory & Supply Connection | |
Finger-switch Pencil: | 1 |
Foot-Switch Pencil: | 2 |
Patient return electro code: | 1 |
Footswitch: | 1 |
AC power supply: | 1 |
Equipotential bonding: | 1 |
Power feature | |
Rate frequency: | 512kHz (110\240v Ac,60\50Hz). |
Isolated output: YES. | |
Quantitative display of contact area: | YES, for ”Split” type of neutral electro code. |
Contact area indicator lamp: | 10 lamps (one for 10% contact), alarm beep and flicker if contact<20%. |
Split\Solid neutral electrode definition: | YES, ”Split” or ”Solid” indicator lamp lights up. |
Adjustable alarm volume: | YES |
Operational duty cycle: | 10 seconds ON, 30 seconds OFF. |
Cooling method: | Convection |
Regulation | |
Type according to EN 60601-1: | CF. |
Protection class to EN 60601-1: | Class 1. |
Classification acc. | to MDD 93\42EEC: llb. |
Physical | |
Dimension (WxDxH): | 330*450*150mm. |
Weight: | 7 Kg. |
Description
Electrosurgical Diathermy EB-03 Healforce
Product Description:
Electrosurgical generator EB-03 is a flexible electrosurgical device throughout all forms of tissue for all surgical procedures. It has incorporated seven functions for power output, tissue reaction, and automatic solid or split return electrode recognition, allowing surgeons to perform highly accurate and secure operations.
- Electrosurgical generator EB03 comes with a user-friendly interface.
- It ensures that all tissue types are cut smoothly.
- Automatic current monitoring and program memory feature of the electrosurgical generator.
- It produces 350 watts/150 watts maximum output.
- It has six monopolar outputs and one bipolar output.
- The electrosurgery unit has an independent output, all of which are floating.
- There are an optional laparoscopy and thoracoscopy adapter.
Brand
Brand
Heal Force
Heal Force Bio-Meditech Holdings Limited was established in 1989 and is a Chinese manufacturer of medical equipment, laboratory equipment and equipment for healthcare. With more than two decades of field experience, we can offer a wide range of products including our electrosurgical generator, anesthetic machine, patient monitor, biological safety cabinet, laboratory centrifuge, pulse oximeter, massager, and more. We can also offer customized solutions to the special requirements of customers.
Our company, headquartered in Hong Kong, has steadily grown and now has many subsidiaries, such as Heal Force Development Limited, Nison Instrument (Shanghai) Limited, Shanghai Lishen Scientific Equipment Company, Shanghai Lonyee Company, to name a few
We have established a comprehensive sales and service network at Heal Force that allows us to deliver quality products and services to customers at home and abroad. Our electrosurgical generator, patient monitor, laboratory centrifuge, CO2 incubator, and other products are currently being exported to over 120 countries around the world, including France, the United States, Brazil, Chile, Colombia, Thailand, India, the Philippines, Turkey, Egypt, South Africa, and more.
